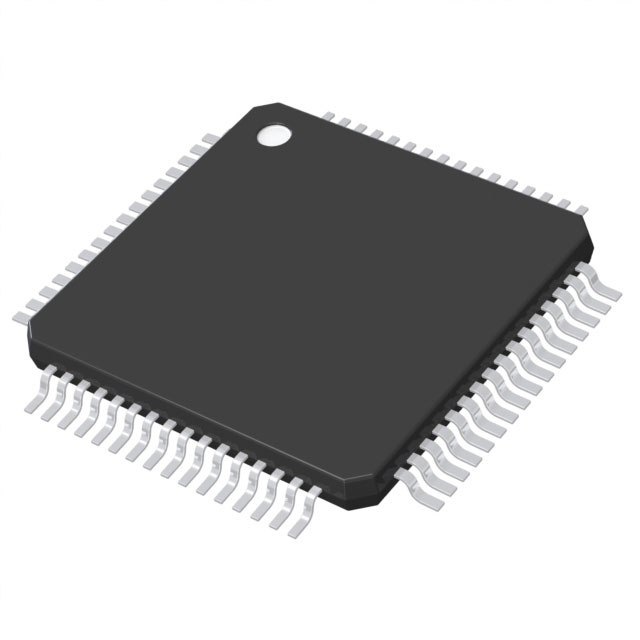

DSPIC33CK32MP206-E/PT - High-performance dsPIC33CK family of 16-bit digital signal controllers (DSCs) featuring a 100MHz dsPIC® DSC core with integrated DSP and enhanced on-chip peripherals.

DSPIC33CK32MP206-E/PT Product Attributes:

Family: dsPIC™ 33CK, Functional Safety (FuSa)

Core Processor: dsPIC

Core Specification: 16-bit

Speed: 100MHz

Number of I/O: 53

Programme Memory Capacity: 32KB (32K x 8)

Program Memory Type: Flash

RAM Size: 8K x 8

Voltage - Supply (Vcc/Vdd): 3V ~ 3.6V

Data Converters: A/D 20x12b; D/A 3x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

Vendor Device Packaging: 64-TQFP (10x10) -TQFP (10x10)

Package/Case: 64-TQFP

DSPIC33CK32MP206-E/PT Product Features:

Operating Conditions

3.0V to 3.6V

-40ºC to +125ºC, DC to 100 MHz

-40ºC to +150ºC, DC to 70 MHz

dsPIC33CK DSC core

Up to 256 KB bytes of program flash with ECC and real-time updates (dual partition flash)

Up to 24 KB bytes of data SRAM with Memory Built-In Self-Test (MBIST)

Modified Harvard Architecture with 16-bit data and 24-bit instructions

Code-efficient (C and assembly) CPU architecture designed for real-time applications

16x 16-bit working registers

4 sets of interrupt context-saving registers including ACC and CPU status registers for fast interrupt handling

Single-cycle mixed-symbol 32-bit MUL

Fast 6-cycle hardware 32/16 and 16/16 DIV

Dual 40-bit fixed-point accumulators (ACC) for DSP operation Accumulator (ACC)

Single-cycle MAC/MPY with dual data fetch and result write-back

Zero-overhead cycle support
