The IXFN90N170SK features high speed switching, low capacitance, and high blocking voltage, low RDS(on), easy paralleling, simple drive, anti-latch, true Kelvin source connection, isolation voltage of 3000 V~, industry standard form factor and RoHS compliant and epoxy compliant to UL 94V-0, aluminium nitride isolation of the base plate, and advanced power cycling.

Product Attributes

FET Type: N-Channel

Technology: SiCFET (Silicon Carbide)

Drain-Source Voltage (Vdss): 1700 V

Current at 25°C - Continuous Drain (Id): 90 A (Tc)

Drive Voltage (Max Rds On, Min Rds On): 20V

On Resistance (Max) at Different Id, Vgs: 35 mOhm @ 100A, 20V

Vgs(th) at different Id (max): 4V @ 36mA

Gate Charge (Qg) (max) at varying Vgs: 376 nC @ 20 V

Vgs (max): +20V, -5V

Input capacitance (Ciss) at different Vds (max): 7340 pF @ 1000 V

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Chassis Mount

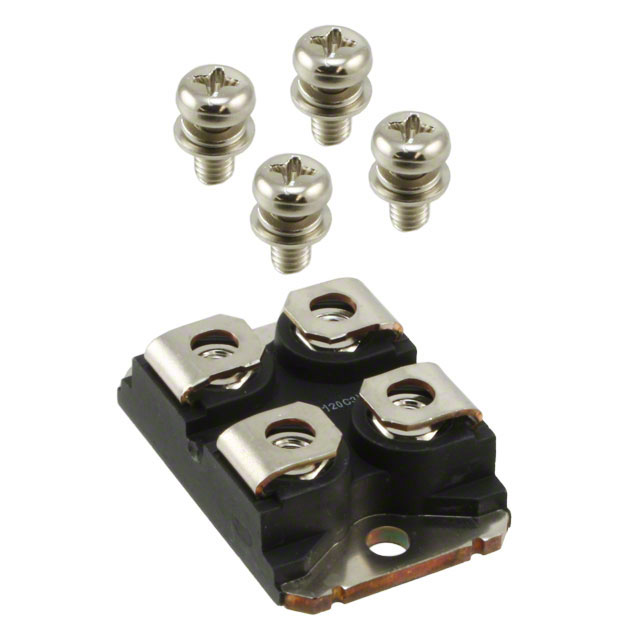

Supplier Device Package: SOT-227B

Package/Housing: SOT-227-4, miniBLOC

Applications

● Solar inverters

● High voltage DC/DC converters

● Motor drives

● Switch-mode power supplies

● Uninterruptible power supplies

● Battery chargers

● Induction heating
