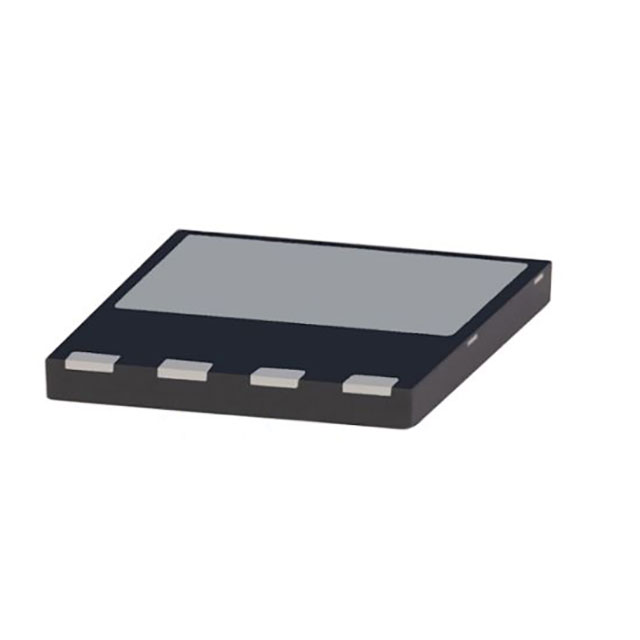

The Infineon 650 V CoolMOS™ CFD7 superjunction MOSFET IPL65R160CFD7 in a ThinPAK 8x8 package is especially suited for resonant topologies in industrial applications such as servers, telecom, solar energy, and EV charging stations, and offers a substantial improvement in efficiency compared to competing products.

Product attributes

FET Type: N-Channel

Technology: MOSFET (Metal Oxide)

Drain-Source Voltage (Vdss): 650 V

Current at 25°C - Continuous Drain (Id): 17A (Tc)

Drive voltage (max. Rds On, min. Rds On): 10V

On-resistance (max) at different Id, Vgs: 160 mOhm @ 6.4A, 10V

Vgs(th) at different Id (max): 4.5V @ 320µA

Gate Charge (Qg) (Max) at Vgs: 28 nC @ 10 V

Vgs (max): ±20V

Input capacitance (Ciss) at varying Vds (max): 1283 pF @ 400 V

Power Dissipation (Max): 98W (Tc)

Operating Temperature: -55°C ~ 150°C (TJ)

Mounting Type: Surface Mount

Supplier Device Package: PG-VSON-4

Package/Housing: 4-PowerTSFN

Benefits

Excellent hard commutation robustness

High bus voltage provides additional design safety margins

Higher power density realized

Excellent light-load efficiency in industrial SMPS applications

Excellent full load efficiency in industrial SMPS applications

Competitive pricing to market competitors

Potential Applications

Electric vehicle fast charging

Server power supplies

Solar system solutions

Telecom Infrastructure
