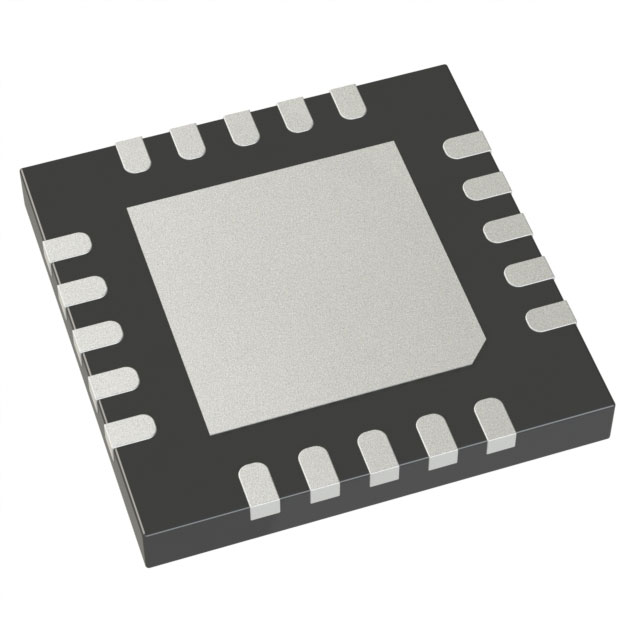

PIC16F18044T-I/ML Microcontrollers feature an array of digital and analog peripherals for cost-sensitive sensor and real-time control needs. The PIC16F180 has a memory range of 3.5KB to 28KB or speeds of up to 32MHz and is housed in 8- to 44-pin packages. The microcontrollers have a 10-bit analog-to-digital converter with computation, automated capacitive voltage divider techniques, and an 8-bit digital-to-analog converter module.

Features

C compiler-optimized RISC architecture

Operating speed

DC 32MHz clock input

125ns minimum instruction time

16-level deep hardware stack

Low-current Power-on Reset (POR)

Configurable Power-up Timer (PWRT)

Brown-out Reset (BOR)

Up to 28KB of program flash memory

Up to 2KB of data SRAM memory

Up to 256Bytes of data EEPROM memory

Rising and falling edge dead-band control

Full-bridge, half-bridge, and 1-channel drive

Multiple signal sources

Programmable dead band

Fault-shutdown input

One configurable 8/16-bit timer (TMR0)

Two 16-bit timers (TMR1/3) with gate control

Three 8-bit timers (TMR2/4/6) with Hardware Limit Timer (HLT)

Up to 35 I/O pins

One input-only pin

Individual I/O direction, open drain, input threshold, slew rate, and weak pull-up control

Interrupt-on-Change (IOC) on up to 25 pins

One external interrupt pin

Applications

Cost-sensitive sensors

Real-time control

Capacitive touch sensing

Waveform control

Communication peripherals

Advanced capacitive touch sensing

Analog-to-digital conversion

Digital-to-analog conversion

Low-power applications
