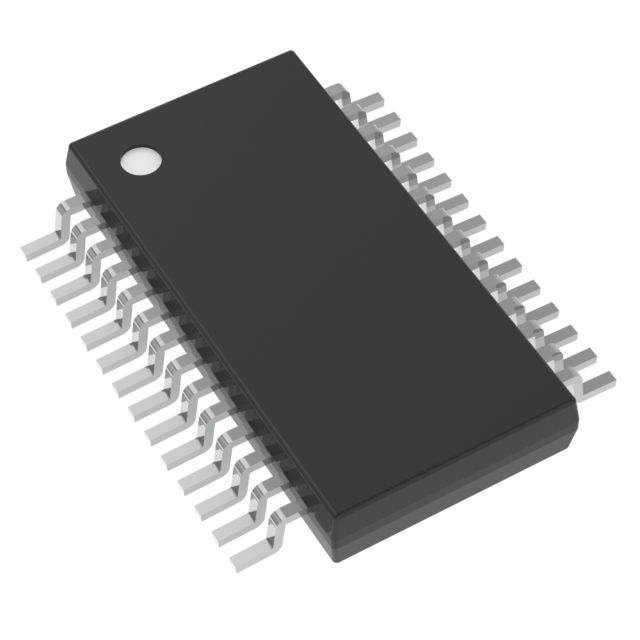

PIC18F25Q10-I/SS is Low-Power, High-Performance Microcontrollers. It feature analog, core independent, and communication peripherals for a wide range of general purpose and low-power applications.

Product Features

Operating Speed:

– DC – 64 MHz clock input over the full VDD range

– 62.5 ns minimum instruction cycle

Programmable 2-Level Interrupt Priority

31-Level Deep Hardware Stack

Low-Current Power-on Reset (POR)

Power-up Timer (PWRT)

Brown-out Reset (BOR)

Low-Power BOR (LPBOR) Option

Up to 64K Bytes Program Flash Memory

Up to 3615 Bytes Data SRAM Memory

Up to 1024 Bytes Data EEPROM

Programmable Code Protection

Direct, Indirect and Relative Addressing modes

Operating Voltage Range: 1.8V to 5.5V

Temperature Range:

– Industrial: -40°C to 85°C

– Extended: -40°C to 125°C

High-Precision Internal Oscillator Block (HFINTOSC):

– Selectable frequencies up to 64 MHz

– ±1% at calibration

32 kHz Low-Power Internal Oscillator (LFINTOSC)

External 32 kHz Crystal Oscillator (SOSC)

External High-frequency Oscillator Block:

– Three crystal/resonator modes

– Digital Clock Input mode

– 4x PLL with external sources

Fail-Safe Clock Monitor: Allows for safe shutdown if external clock stops

Oscillator Start-up Timer (OST)
