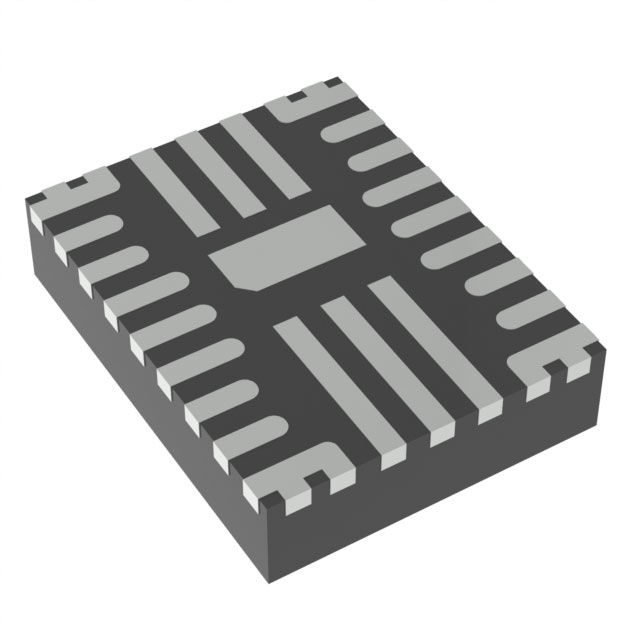

TPS25858QRPQRQ1 is an integrated USB charging port solution, which includes a synchronous DC/DC converter capable of supplying up to 6.6 A and integrated detection and control for implementing USB Battery Charging 1.2 and Type-C ports.

Product Features

Synchronous buck regulator

High efficiency at 400 kHz: 94.5% at VIN = 13.5V, IPA_BUS = 3 A and IPB_BUS = 3 A

18-mΩ/10-mΩ Low RDS(ON) buck regulator MOSFETs

Operating voltage range: 5.5 V to 26 V, withstand 36-V input

Adjustable frequency: 200 kHz to 800 kHz

FPWM with spread-spectrum dithering

Selectable output voltage: 5.1 V, 5.17 V, 5.3 V, 5.4 V

Line drop compensation: 90 mV at 2.4-A load

3A capability advertisement on CC

VBUS application and discharge

VCONN source: 200 mA

Applications

• Automotive USB charging ports

• Automotive USB media hubs
