The DRV5053-Q1 bipolar analogue Hall effect sensor is a chopper-stabilised Hall effect IC that provides a magnetic field sensing solution with excellent sensitivity stability and integrated protection over the feasible temperature range. 0 to 2V analogue output responds linearly to the applied flux density and discriminates polarity in the direction of the magnetic field. Reverse polarity protection over a wide operating voltage range of -22V (2.5 to 38V) makes this device suitable for a wide range of industrial and consumer applications. Internal protection is provided against adverse supply conditions, dump loads, output short circuits or over-currents.

Product properties

Technology: Hall effect

Axis: Single circuit

Output type: Analogue voltage

Sensing range: ±9mT

Voltage - Supply: 2.7V ~ 38V

Current - Supply (Max): 3.6mA

Current - Output (Max): 2.3mA

Resolution: -

Bandwidth: 20kHz

Operating Temperature: -40°C ~ 150°C (TA)

Characteristics: Temperature compensated

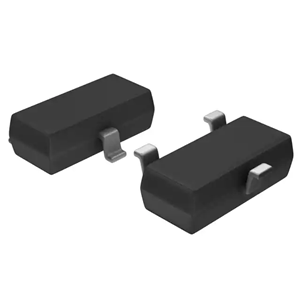

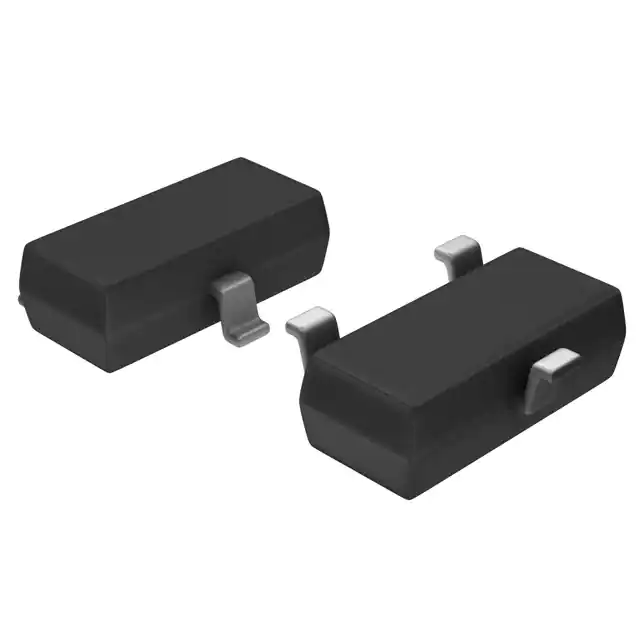

Supplier Device Package: SOT-23-3

Mounting Type: Surface Mount

Package/Housing: TO-236-3, SC-59, SOT-23-3

Applications

- Flow meters

- Docking adjustment

- Vibration correction

- Vibration damper control
