The TLE92104-131 is a multi-MOSFET driver IC designed to control up to eight n-channel MOSFETs. It consists of four half-bridges for DC motor control applications, such as automotive electric seat control or other applications. The 24-bit Serial Peripheral Interface (SPI) is used to configure the TLE92104-131 and control the half-bridge. It also allows reading status registers for diagnostic purposes.

Device: TLE92104131QXXUMA1

Output configuration: Half bridge (4)

Application: DC motor, general purpose

Interface: Analog, Logic, PWM, SPI

Load type: -

Technology: -

On-resistance (typical) : 40 ohms

Current - Output/Channel: -

Current - Peak output: -

Voltage - Power supply: 3V ~ 5.5V

Voltage - load: -

Operating temperature: -40°C ~ 150°C (TJ)

Features: Charging pump

Fault protection: overtemperature, short circuit

Mounting type: Surface mount type

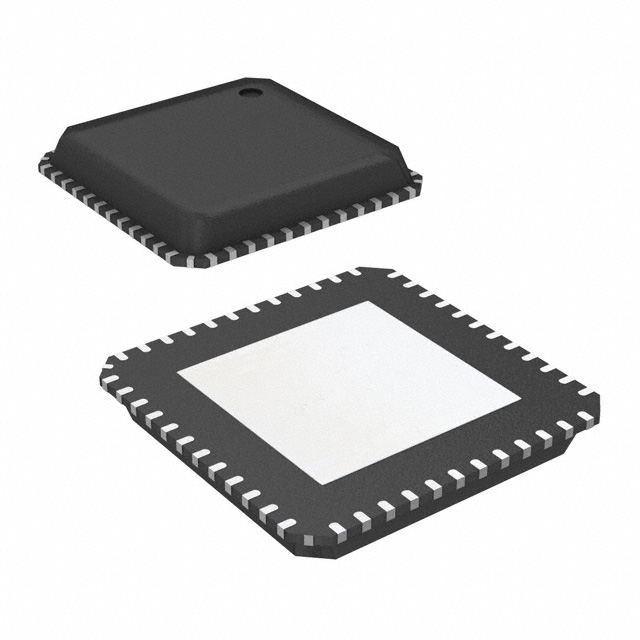

Package/housing: 48-VFQFN bare pad

Supplier device package: PG-VQFN-48-29

Basic product number: TLE92104131

Application

• Seat control and expansion functions (steering column adjustment, gas pedal adjustment)

• Central door lock

• Body control modules (trunk lid, washer pump, window lifter, rear wiper...)
