Service Telephone:86-755-83294757
Trade Name:ADN4693E-1BCPZ
Data Manual:ADN4693E-1BCPZ.pdf
Brand:ADI
Particular Year:23+

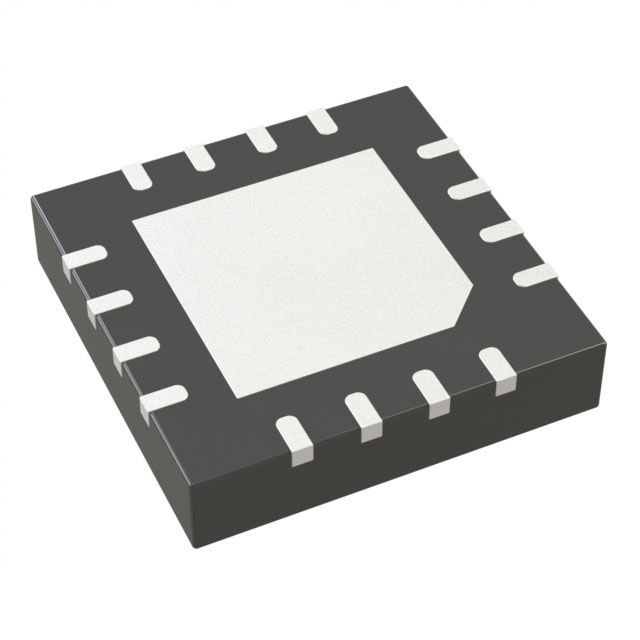

Package:16-WQFN
Delivery Date:New and Original
Stock: 1000pcs
The ADN4693E-1BCPZ is a multipoint, low-voltage differential signaling (M-LVDS) transceiver (driver and receiver pair) that operates at up to 200 Mbps (100 MHz) at non-return-to-zero (NRZ). The receiver detects bus status with differential inputs down to ±50 mV over the common mode voltage range of the kit. Electrostatic discharge (ESD) protection up to ±15 kV is implemented on the bus pins.The ADN4693E-1 is designed according to the TIA/EIA-899 standard for use in M-LVDS networks and complements the TIA/EIA-644 LVDS kit with additional multipoint functionality.
Features
● Full-duplex M-LVDS transceiver (driver and receiver pair)
● Switching rate: 200 Mbps (100 MHz)
● Class 1 receiver with 25 mV hysteresis
● Compatible with TIA/EIA-899 standard for M-LVDS
● Burr-free power-up/shutdown on the M-LVDS bus
● Controlled transition time for driver outputs
● Common mode range: -1 V to +3.4 V, allowing communication with 2 V ground noise
Applications
● Backplane and cable multipoint data transfer
● Multi-point clock distribution
● Low-power, high-speed alternative to shorter RS-485 interface links
● Network and wireless base station infrastructure
● Grid infrastructure and relay protection systems
