XDPS2201XUMA1 contains a Hybrid-flyback controller that is based on an asymmetrical half-bridge control. The half-bridge is driving a conventional flyback transformer in conjunction with a serial capacitor.

Product Highlights

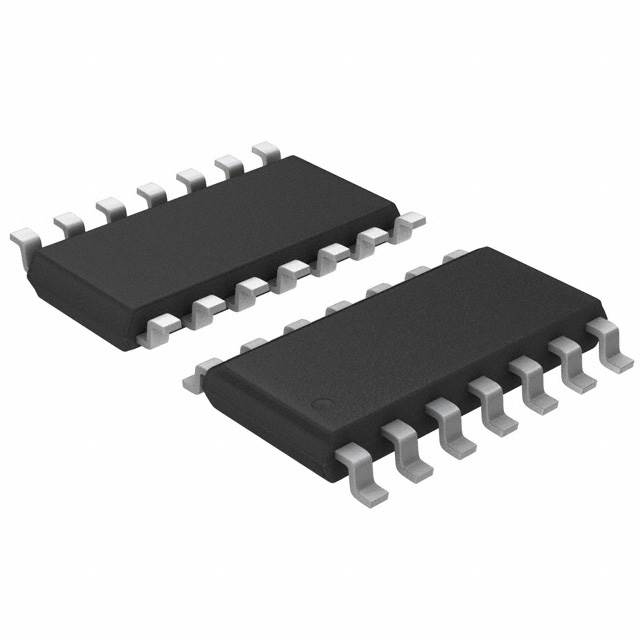

Digital Hybrid-flyback controller with integrated half-bridge driver in DSO-14 (150mil) package

600V high voltage start-up cell for fast charging and low stand-by power

Peak current mode control for robust and fast line and load control

Burst mode entry/exit operation based on output current estimation

Primary side output overvoltage protection

Supports lowest no-load stand-by power < 75mW

Wide range of configurable parameters via one pin UART interface

Lowest necessary bill of material

Features

Configurable brown-in and brown-out protection

Configurable built-in soft-start

Configurable burst mode entry and exit current thresholds with small hysteresis

Configurable overcurrent protection with two levels for peak and transient load

Configurable output overvoltage protection

Configurable frequency reduction with cycle skipping for improved low load efficiency

Configurable jitter for switching frequency

Configurable propagation delay compensation for accurate peak current control

Pb-free lead plating; RoHS compliant

Halogen-free according to IEC61249-2-21

Applications

AC/DC SMPS

Ultra high power density adapter > 20W/inch³

Ultra high efficiency SMPS > 93%
