The TCAN1462-Q1 are high-speed Controller Area Network (CAN) transceivers that meet the physical layer requirements of the ISO 11898-2:2016 high-speed CAN specification and the CiA 601-4 signal improvement function (SIC) specification. These devices reduce signal ringing from the dominant to the recessive edge and enable higher throughput in complex network topologies. The signal improvement function enables many applications to operate at 2Mbps, 5Mbps and higher in large networks with multiple unterminated stubs, thus exploiting the true benefits of CAN FD (flexible data rate).

Features

- AEC Q100 (Class 1): meets the requirements of automotive applications

- Available in functionally safe versions

- Documentation for the design of functionally safe systems is available

- Meets the requirements of ISO 11898-2:2016 and CiA 601-4 standards

- Supports conventional CAN and CAN FD up to 8Mbps

- Positive improvement of bus signals by reducing ringing in complex topologies

- Backward compatible for use in legacy CAN networks

- VIO level conversion support: 1.7V to 5.5V

- Operating modes

- Normal mode

- Low power standby mode with remote wake-up request function

- Passive behaviour when not powered

- Bus and logic terminals in high resistance state (no load on running bus or application)

- Hot-plug support: power-up/power-down interference-free operation on bus and RXD outputs

- Defined device behaviour in case of floating logic pins and power supply undervoltage

- Protection features

- IEC ESD protection on bus pins

- ±58V CAN bus fault tolerance

- Under-voltage protection on VCC and VIO (V models only) power terminals

- TXD dominant state timeout (TXD DTO)

- Thermal shutdown protection (TSD)

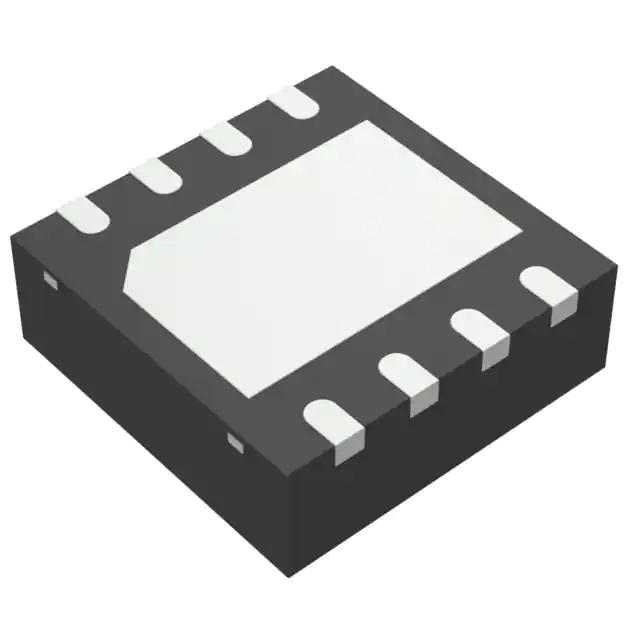

- Available in SOIC (8), small SOT-23 (8) and leadless 3mm x 3mm VSON (8) packages, with wettable flanks and improved automatic optical inspection (AOI) capability

Applications

- Automotive gateways

- Advanced Driver Assistance Systems (ADAS)

- Body electronics and lighting

- Hybrid, electric and powertrain systems

- Automotive infotainment systems and instrument clusters
