The L99VR02J linear regulator provides up to 500mA of load current. The Low Voltage Difference (LDO) regulator operates from 2.15V to 28V and from -40°C to 175°C. The regulator can operate either with a rear regulator connected directly to the battery or with a pre-regulated voltage. The regulator complies with the AEC-Q100 standard and is ideal for automotive applications.

specification

Output configuration: positive

Output type: programmable

Voltage regulator number: 1

Voltage - Input (Max) : 28V

Voltage - output (min/fixed) : 0.8V

Voltage - output (Max) : 5V

Voltage drop (Max.) : 0.5V @ 500mA

Current - Output: 500mA

Current-static (Iq) : 130 µA

Current - Power supply (Max.) : 2.5 mA

PSRR: 75dB (1kHz)

Control features: current limiting, enabling, reset output, watchdog

Protection function: Over current, over temperature, over voltage, short circuit, Under voltage lock (UVLO)

Operating temperature: -40°C ~ 175°C (TJ)

Mounting type: Surface mount type

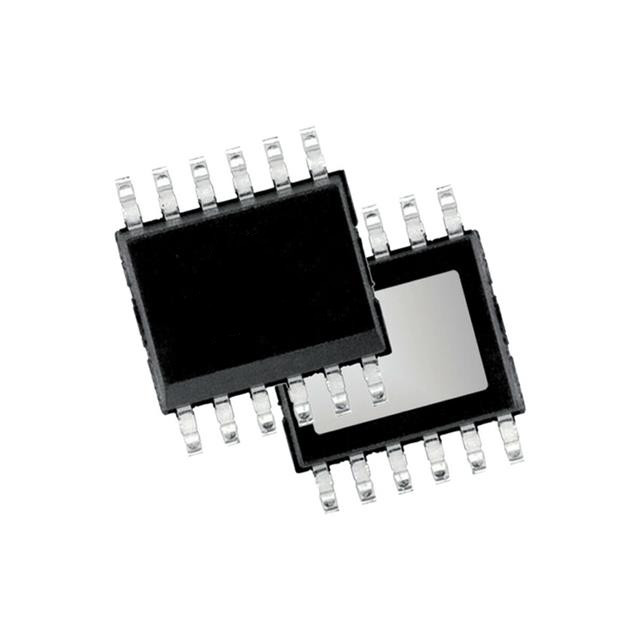

Package/housing: 12-LSOP (0.154", 3.90mm wide) bare pad

Vendor device package: PowerSSO-12
