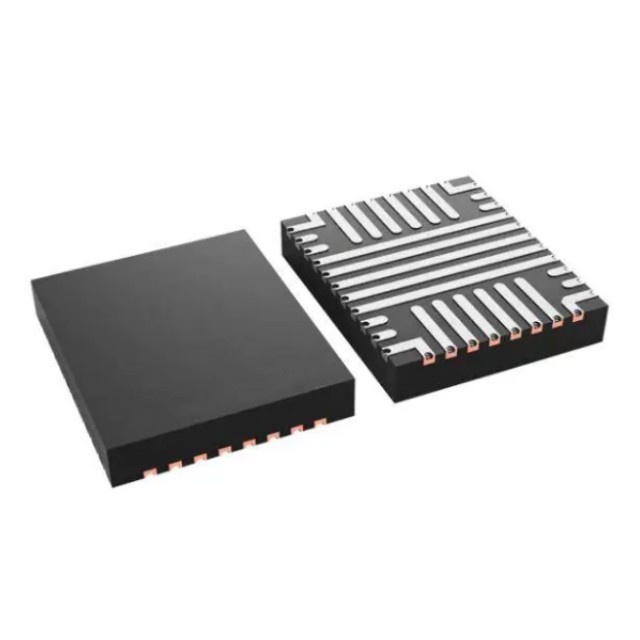

The TPS25772CQRQLRQ1 is a fully integrated dual-port USB Type-C® power delivery (PD) solution with an integrated buck-boost converter for automotive dual USB port applications. Features include: integrated buck-boost converter with 4 power switches; ARM Cortex-M0; USB port controller with Type-C cable plug and orientation detection; USB Battery Charging Specification version 1.2 (BC1.2) detection; USB endpoint physical layer; device power management and monitoring circuits; connector pin over-voltage and short-circuit protection; and intelligent system policies. The manager maximises USB power while protecting the system from automotive battery transient and overheating conditions.

Product Attributes

Manufacturer: Texas Instruments

Product Category: USB Interface ICs

Family: TPS25772-Q1

Mounting Style: SMD/SMT

Package / Case: VQFN-29

Standard: USB-C 1.2

Speed: Low Speed (LS)

Data Rate: 1.5 Mb/s

Supply Voltage - Min: 5.5 V

Supply Voltage-Max: 18 V

Operating supply current: 2 mA

Minimum operating temperature: - 40 C

Maximum operating temperature: + 125 C

Core: ARM Cortex M0+

Interface Type: I2C

Number of Ports: 2

Applications

Automotive USB charging

Automotive media hubs

Automotive mainframes

Automotive rear seat entertainment systems
