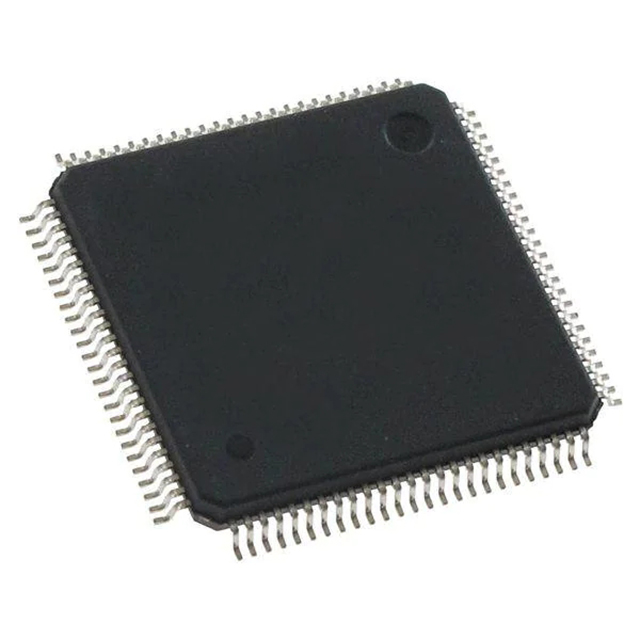

CYAT817AZS61-3A002 is a PSoC™ Automotive Multitouch Generation 7XL Touch Screen Controllers

Features

Automotive Electronics Council (AEC) AEC-Q100 qualified

Multi-touch capacitive touchscreen controller

32-bit Arm® Cortex® CPU

Register-configurable

Noise-suppression technologies for display and EMI

Hover sensing (up to 35 mm)

Force Touch

Slider sensing

CAPSENSE™ button sensing

Wake-up button sensing

Low-power wake-up button (< 50 µA)

Wake-on-touch screen

Runtime diagnostics

Support for split screen

Support for free form shapes

Effective 20-V drive for higher signal-to-noise ratio (SNR)[1]

AutoArmor improves both electromagnetic emissions and immunity

External display synchronization

Water rejection and wet-finger tracking using DualSense

Automatic baseline tracking to environmental changes

Low-power look-for-touch mode

Field upgrades via bootloader

Manufacturing test kit (MTK)

Android driver support

Touchscreen sensor self-test

Screen sizes up to 15-inch diagonal

5.3-mm electrode pitch; 16:10 aspect ratio

Up to 103 sense pins, 2500 intersections

Reports up to ten fingers

Small finger support down to 5 mm

Refresh rate up to 250 Hz; other rates configurable

TX frequency up to 300 kHz

5V TX with high-order multi-phase TX capability for higher signal-to-noise ratio

High-frequency TX frequency hopping supported for optimal noise filtering

Integrated DSP to process and filter data for faster scanning and lower noise

5 RX channels can be used for parallel touch/force scan

Typical Force range: 0.5 N to 10 N

Minimum displacement: 100 μm/10 N

Rigid body mechanic implementation

Refresh rate up to 100 Hz

Use of simple/cost-efficient FPC sensors

Sensor and system design (configuration-dependent)

Supports a variety of touchscreen sensors and stackups

Sensor-on-lens (SOL)

On-cell touch integrated display modules

Single-Layer Independent Multi-Touch (SLIM)

Plastic (PET) and glass-sensor substrates

LCD, AMOLED, and IPS displays

Primary host communication interface

SPI slave bit rates up to 8 Mbps
