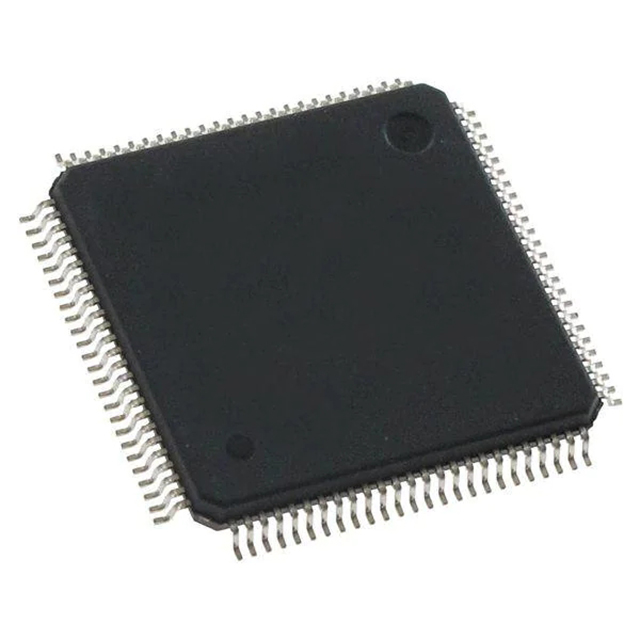

For picture reference, please see the specifications
< >

Commodity Model:CYAT827AZA59-22002

Trade Name:CYAT827AZA59-22002

Data Manual:CYAT827AZA59-22002.pdf

Brand:INFINEON

Particular Year:23+

Package:100-LQFP

Delivery Date:New original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
CYAT827AZA59-22002
Package
100-LQFP
Describe
Touchscreen Controller 2 Wire Capacitive I²C Interface

Product Description

CYAT827AZA59-22002 is PSoC™ Automotive Multitouch Generation 7XL Hybrid In-cell Touchscreen Controller.


Features

Automotive Electronics Council (AEC) AEC-Q100 qualified

In-cell touchscreen controller

Multi-touch capacitive touchscreen controller

32-bit Arm® Cortex® CPU

Register-configurable

Noise-suppression technologies for display and EMI

AutoArmor improves both electromagnetic emissions and immunity

Effective 20-V drive for higher signal-to-noise ratio (SNR)

Water rejection

Multitouch glove with automatic mode switching

Ten fingers with thin glove (≤1-mm thick)

Fingernail tracking

Large object rejection

Automatic baseline tracking to environmental changes

Field upgrades via bootloader

Manufacturing test kit (MTK)

Touchscreen sensor self-test

Android driver support

System performance (configuration dependent)

Screen sizes up to 20-inch diagonal

5.3-mm electrode pitch; 16:10 aspect ratio

Up to 64 RX channels, 2176 intersections; 16:10 aspect ratio

Reports up to ten fingers

Small finger support down to 5 mm

Refresh rate up to 250 Hz; other rates configurable

Integrated DSP to process and filter data for faster scanning and lower noise

Power (configuration-dependent)

1.71 to 1.95 V and 3.0 to 5.5 V logic and digital I/Os supply

3.0 to 5.5 V analog supply

30-mW average power

Sensor and system design (configuration-dependent)

Supports In-cell sensors

TX/VCOM share the same layer

RX ITO layer on/above the color filter

Primary host communication interface

I2C slave at 100 and 400 kbps
