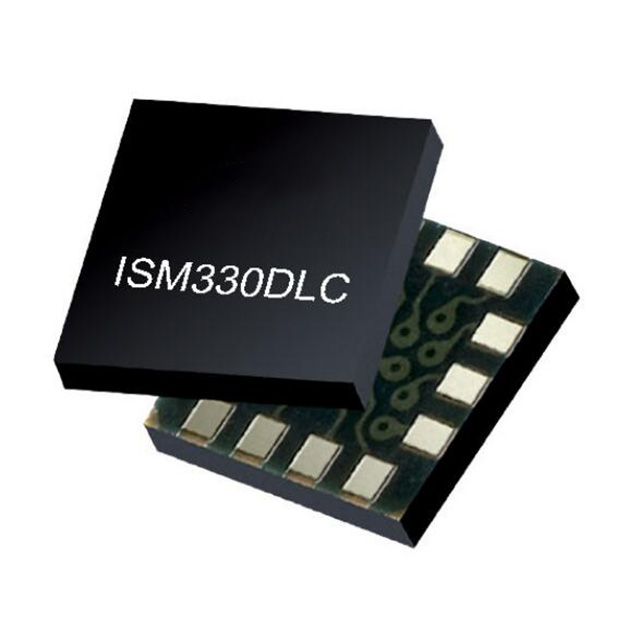

ISM330DLCTR is a system-in-package 6-axis IMU (inertial measurement unit), featuring a high-performance 3-axis digital accelerometer and 3-axis digital gyroscope tailored for Industry 4.0 applications.

Product Features

3-axis accelerometer with selectable full scale: ±2/±4/±8/±16 g

3-axis gyroscope with selectable full scale: ±125/±250/±500/±1000/±2000 dps

Analog supply voltage: 1.71 V to 3.6 V

SPI & I²C serial interface with main processor data synchronization

Smart embedded functions and interrupts: tilt detection, free-fall, wake-up, 6D/4D orientation, click and double click

Sensor hub feature to efficiently collect data from additional external sensors

Embedded hard, soft ironing for external magnetic sensor corrections

Embedded temperature sensor

Embedded self-test both for gyroscope and accelerometer

High shock survivability

Extended operating temperature range (-40 °C to +85 °C)

Applications

Industrial IoT and connected devices

Antennas, platforms, and optical image and lens stabilization

Robotics, drones, and industrial automation

Navigation systems and telematics

Vibration monitoring and compensation
