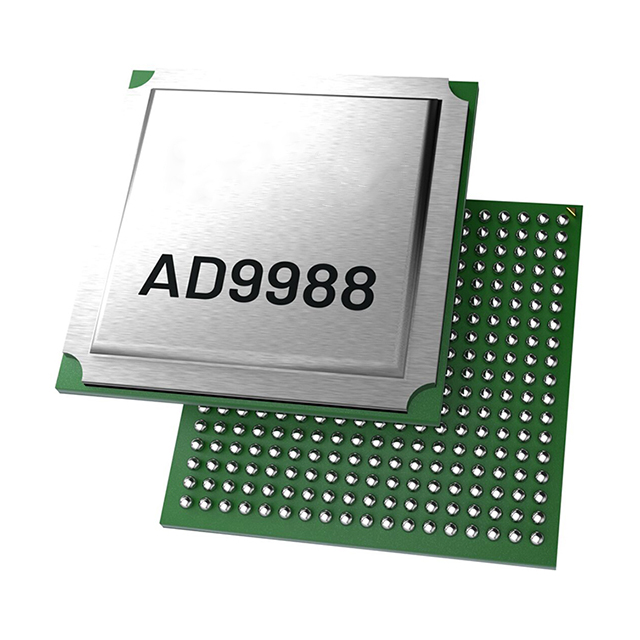

AD9988BBPZ-4D4AC is a highly integrated device with four 16-bit, 12 GSPS maximum sample rate, RF digital-to-analog converter (DAC) cores, and four 12-bit, 4 GSPS rate, RF analog-to-digital converter (ADC) cores. It supports four transmitter channels and four receiver channels with a 4T4R configuration.

Product Features

Flexible, reconfigurable radio common platform design

Transmitter/receiver channel bandwidth up to 1.2 GHz (4T4R)

RF DAC/RF ADC RF frequency range up to 7.5 GHz

On-chip PLL with multichip synchronization

External RF clock input option

2 independent 48-bit NCOs per DUC or DDC

Programmable 192-tap PFIR filter for receive equalization

Supports 4 different profile settings loaded via GPIO

Programmable GPIO pins support toggling between modes

Supports multidevice synchronization

15 mm × 15 mm, 324-ball BGA with 0.8 mm pitch

Applications

Wireless communications infrastructure

W-CDMA, LTE, LTE-A, massive multiple input multiple output (MIMO)

Point to point microwave, E-band, and 5G mmWave

Broadband communications systems

DOCSIS 3.0+ cable modem termination system (CMTS)

Communication test and measurement systems
