(ADI) ADP5072ACBZ DC/DC Switching Regulator with Separate Positive and Negative Outputs

(ADI) ADP5072ACBZ DC/DC Switching Regulator with Separate Positive and Negative Outputs

Source:our siteTime:2024-05-16Views:

Product Description:The ADP5072ACBZ is A dual-channel, 1 A/0.6 A DC/DC switching regulator with independent positive and negative outputs that independently generate an adjusted positive and negative power supply rail. The input voltage range from 2.8…

Product Description:

The ADP5072ACBZ is A dual-channel, 1 A/0.6 A DC/DC switching regulator with independent positive and negative outputs that independently generate an adjusted positive and negative power supply rail. The input voltage range from 2.85V to 5.5V supports a variety of applications. Integrated master switches in both regulators support the generation of adjustable positive output voltages up to 35V and negative output voltages down to −30V.


Features:

Input voltage range: 2.85V to 5.5V

Generate fully regulated VPOS and VNEG outputs that can be independently programmed with resistance

The boost regulator can generate a VPOS output

The positive output can be adjusted to 35V

Integrated 1.0A master switch

The inverter voltage regulator can generate a VNEG output

Negative output can be adjusted to -30V

Integrated 0.6A master switch

1.2MHz/2.4MHz switching frequency with optional external frequency synchronization from 1.0MHz to 2.6MHz

Resistor programmable soft start timer

Swing rate control is available to reduce system noise

Separate precision enable and flexible start sequence control enables symmetric start, starting VPOS first or VNEG first

Out-of-phase operation

UVLO, OCP, OVP and TSD protection

1.61mm × 2.18mm, 20-ball WLCSP

Junction temperature range: -40°C to +125°C


Applications:

• Bipolar amplifier, analog-to-digital converter (ADC), digital-to-analog converter (DAC) and multiplexer

• Charge Coupled Device (CCD) bias power supply

• Optical module power supply

• RF power amplifier bias

• Time of flight module power supply

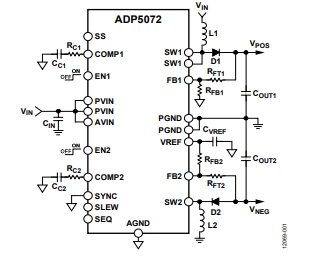

Typical application diagram:


If you need to buy ADP5072ACBZ, or need BOM table, please feel free to contact us!
