LT4422AV: 28V, 4A ideal diode

This device has the following main characteristics:

Internal 50mΩ power supply path

Wide operating voltage range: 1.9V to 28V

Reverse current protection

Low static current: 10μA

Fast load step response: 3μs

Low turn-off state current: 500nA

Smooth switching in diode-OR applications

10-pin (3mm×2mm×0.75mm) LDFN package

Overview

The LT4422AV is an ideal diode with an integrated P-channel MOSFET, operating within a range of 1.9V to 28V. Compared with the Schottky diode, after enabling this diode, its 15mV forward voltage regulation characteristic can significantly reduce power consumption, while increasing the operating margin and efficiency.

The LT4422AV can easily achieve the ORing function of multiple power supplies, thereby enhancing system reliability and preventing reverse conduction. When not in operation, the LT4422AV can block up to 28V of voltage at the output end, and the leakage current is less than 1μA (typical value). Its performance is several orders of magnitude higher than that of a typical Schottky diode, effectively extending battery life.

Rapid Out-to-in reverse bias detection can significantly reduce reverse current and prevent accidental charging of the input battery. When the LT4422AV is in the off or reverse bias state, the open-drain STATUS output will be pulled low.

Application scenarios

The LT4422AV is suitable for a variety of application scenarios, including but not limited to:

Schottky diode substitutes

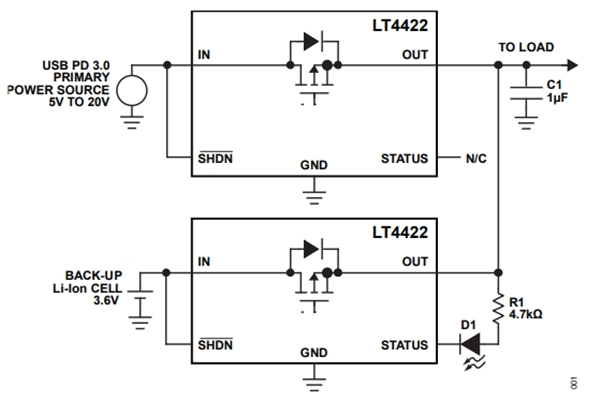

Battery and wall adapter diode ORing

Spare battery diode ORing

Industrial and consumer handheld applications

In addition, the LT4422AV also has the following main specifications:

Type: N+1 ORing controller

FET type: P channel

Ratio - Input: Output: 1:1

Internal switch: Yes

Delay time - On: 3 µs

Delay time - Off: 15 µs

Current - Output (maximum value) : 4A

Current - Power supply: 10 µA

Voltage - Power supply: 1.9V to 28V

Application: General

Operating temperature: -40°C to 125°C (TJ)

Installation type: Surface mount type

Package/Shell: 10-LDFN
