The IHW20N135R5 insulated Gate bipolar transistor (IGBT) is specially optimized for the demanding requirements of induction cooking applications, suitable for soft-switching applications such as induction cooking stoves and inverter microwave ovens, as well as for designs that require hard-switching capabilities ‌.

Performance parameters

Product: IHW20N135R5

Configuration: Single

The maximum collector-emitter voltage VCEO: 1.35 kV

Collector-emitter saturation voltage: 1.65V

Maximum gate/emitter voltage: -20V, 20V

Continuous collector current at 25 C: 40 A

Pd- Power dissipation: 288 W

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 175 ° C

Series: RC

Package/Box: TO-247-3

Installation style: Through Hole

Gate-emitter leakage current: 100 nA

Product type: IGBT Transistors

Part number alias: SP001078568 IHW20N135R5XKSA1

Unit weight: 6 g

Overview

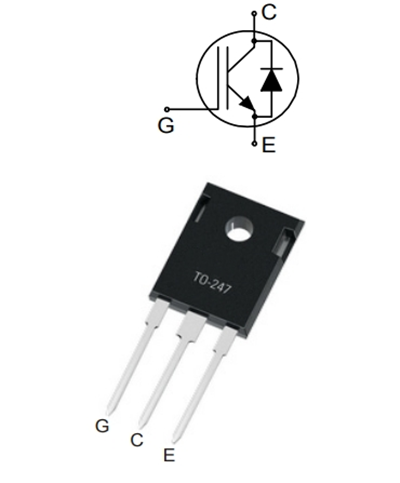

IHW20N135R5 is a 1350V, 20A IGBT single tube in a TO-247 package with monolithic integrated reverse conducting diode ‌‌. This IGBT single tube is specially optimized for the demanding requirements of induction cooking applications, suitable for soft-switching applications such as induction cooking stoves and inverter microwave ovens, as well as designs that require hard-switching functionality ‌.

Feature description

The reduction rate of switching losses is as high as 20%

Ultra-low on-state loss

The peak starting current is reduced by 10%

Tj(max) = 175°C

Soft current turn-off waveform with low EMI

The higher blocking voltage VBR (min) = 1350

Advantages and application fields

IHW20N135R5 has the following advantages:

Increase in switching frequency

Reduce power loss

Better thermal management can enhance reliability

Lower EMI filtering requirements

Reduce system costs

The highest reliability for peak current

Application field

IHW20N135R5 is widely applied in the following fields:

Variable-frequency microwave oven

Circuit design of Induction cooker

Circuit Design of Induction Rice Cooker

Household appliances

The IHW20N135R5 reverse-conducting IGBT combines the performance of the TRENCHSTOP™ series with innovative reverse-conducting RC-H IGBT technology, featuring a higher switching frequency, low power consumption, and improved thermal management, with extremely high reliability.

Procurement inquiry

Please visit the official website of Mingjiada Electronics (www.hkmjd.com) to check the real-time inventory and product price of IHW20N135R5 online.
