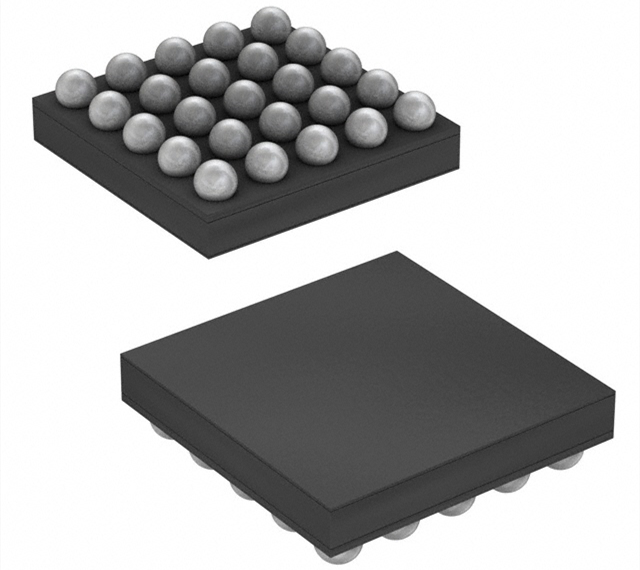

Shenzhen Mingjiada Electronics Co., Ltd. new original sale ST microcontroller STM32G031K8U6TR Mainstream Arm Cortex-M0+ MCU with 64 KB Flash memory, 8 KB RAM, 64 MHz CPU, 2x USART, timer, ADC and communication interface, 1.7-3.6V

Device Description:

The STM32G031K8U6TR mainstream microcontrollers are based on the high-performance Arm® Cortex®-M0+ 32-bit RISC core and operate up to 64 MHz.These microcontrollers are highly integrated and suitable for a wide range of applications in the consumer, industrial, and appliance sectors and are ready for Internet of Things (IoT) solutions.

The devices integrate a memory protection unit (MPU), high-speed embedded memory (8 kilobytes of SRAM and up to 64 kilobytes of Flash program memory with read protection, write protection, proprietary code protection, and protectable regions), DMA, a wide range of system functions, enhanced I/O, and peripherals. The devices provide standard communication interfaces (two I2C, two SPI/one I2S, and two USART), a 12-bit ADC (2.5 MSps) (up to 19 channels), an internal voltage reference buffer, a low-power RTC, a high-level control PWM timer running at up to twice the CPU frequency, four general-purpose 16-bit timers, a 32-bit general-purpose timer, and two I/O peripherals. 32-bit general-purpose timer, two low-power 16-bit timers, two watchdog timers, and a SysTick timer.

The devices operate in a -40 to 125°C ambient temperature range with supply voltages from 1.7 V to 3.6 V. Optimised dynamic power consumption combined with a full suite of power-saving modes, low-power timers, and low-power UARTs enable low-power application designs.

Features

Core: Arm® 32-bit Cortex®-M0+ CPU up to 64 MHz

Operating temperature: -40°C to 85°C/105°C/125°C

Memory

Up to 64 Kbytes of Flash memory with protected and secure areas

8 Kbytes SRAM with hardware parity check

CRC calculation unit

Reset and power management

Voltage range 1.7 V to 3.6 V

Power on/off reset (POR/PDR)

Programmable undervoltage reset (BOR)

Programmable voltage detector (PVD)

Low-power modes: sleep, stop, standby, shutdown

VBAT power supply for RTC and backup registers

Clock management

4 to 48 MHz crystal oscillator

32 kHz crystal oscillator with calibration

Internal 16 MHz RC with PLL option (±1)

Internal 32 kHz RC oscillator (±5)

Up to 44 fast I/Os

All mappable external interrupt vectors

Multiple 5 V tolerance I/Os

5-channel DMA controller with flexible mapping

12-bit, 0.4 µs ADC (up to 16 expansion channels)

Up to 16-bit with hardware oversampling

Conversion range 0 to 3.6V

11 timers (one 128 MHz): 16-bit timer for advanced motor control, one 32-bit and four 16-bit general-purpose timers, two low-power 16-bit timers, two watchdog timers, SysTick timer

Calendar RTC with alarms and periodic wake-up from stop/standby/shutdown states

Communication Interfaces

Two I2C bus interfaces supporting Fast Mode Plus (1 Mbit/s) with additional current sinks, one supporting SMBus/PMBus with wake-up from stop mode

Two USARTs with master/slave synchronised SPI; one supports ISO7816 interface, LIN, IrDA function, automatic baud rate detection and wake-up function

One low-power UART

Two SPIs (32 Mbit/s) with 4- to 16-bit programmable bitframes, one of which is multiplexed with the I2S interface

Development support: Serial Wire Debug (SWD)

96-bit unique ID

All packages are ECOPACK 2 compliant
