Product Details:

The RTL8221BI-VB-CG is a highly integrated Ethernet PHY transceiver compatible with 10BASE-TE, 100BASE-TX, 1000BASe-T, and 2.5GBASE-T, and is fully compatible with the IEEE 802.3 standard and the nBase-T™Alliance PHY. It provides all the necessary physical layer functionality to transmit and receive Ethernet packets over Cat.5e UTP cables.

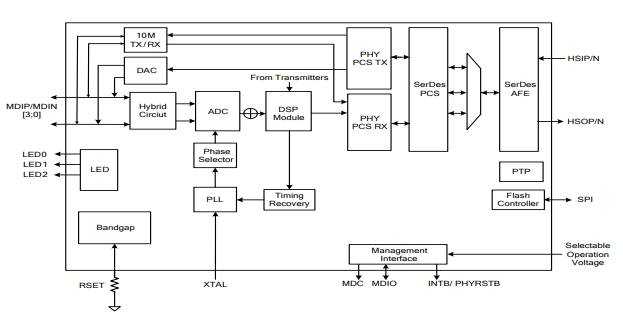

The RTL8221B (I) -VB uses the most advanced DSP technology and analog front end (AFE) to enable high-speed data transmission and reception over UTP cables. The RTL8221B (I) -VB provides cross-detection automatic correction, polarity correction, MDI switching, adaptive equalization, crosstalk cancellation, echo cancellation, timing recovery, RFI protection, thermal management, loop back diagnostics, and error correction to provide powerful transmission and reception capabilities.

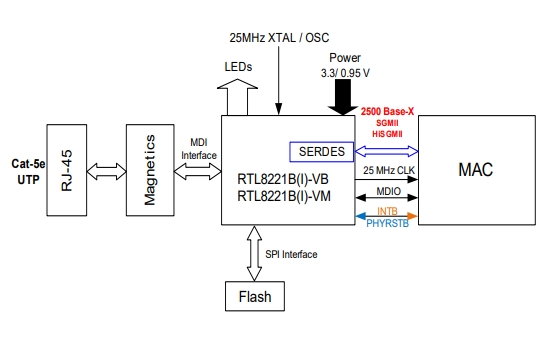

The data transfer between the MAC and PHY takes place via the SERDES (Serializer - deserializer) interface, which supports SGMII, HISGMII, and 2500BASE-X. The RTL8221BI-VB-CG operates at a variety of digital I/O voltages, including 3.3V and 1.8V.

Product features:

Compatible with IEEE 802.3, IEEE 802.3U, IEEE 802.3AB

Support IEEE 802.3az (Energy Efficient Ethernet)

Support IEEE 802.3bz (2.5GBASE-T)

Supports full-duplex flow control (IEEE 802.3x)

Support for IEEE 802.3 optional features (energy efficient Ethernet and fast retraining)

Integrated 10M Base-TE and 100M/1000M/2.5GBase-T IEEE 802.3-compatible transceivers

Supports 2.5G Lite (1G data rate) mode

Automatic negotiation with extended Next Page function (XNP)

Compatible with the NBASE-TTM Alliance PHY specification

Supports line pair exchange/polarity/skew correction

Cross detection automatic correction

Configurable MDI port ordering (MDI switching) for easy PCB layout

Supports the hardware CRC (Cyclic redundancy check) function

Supports power saving or link down power saving mode

Support for Article 22 and 45 MDC/MDIO management interfaces

Rate adapter that supports SERDES

Optional SERDES interface to MAC control (SGMII/HISGMII/2500 Base-X)

Built-in LAN Wake-up (WOL) based on UTP

Supports interrupt function on UTP

Support parallel detection

Support PHYRSTB core power off

Baseline drift correction

Optional 3.3/1.8V signal for MMD access

Supports 25MHz crystal oscillator or external OSC

Provides a 25MHz clock source for Mac devices

Offers 3 network customized leds with controlled LED flicker frequency and duty cycle

Self-loopback diagnostic function

Thermal management on PHY

48-pin QFN green package

22nm process, ultra-low power consumption

Full hardware support for synchronous Ethernet and Precise Time Protocols (PTP), including IEEE 1588v1, v2, and 802.1as

Supports SPI flash memory (up to 24MB flash size)

Industrial grade Manufacturing process (RTL8221BI-VB/RTL8221BI-VM)

Product Application:

• DTV (Digital Television)

• Media access unit

• CNR (Communication and Network Riser)

• Game console

• Printers and office machines

• DVD player and burner

• Ethernet hub

• Ethernet switch

• Base station and controller

• Router, DSLAM, PON device

• Test and measurement systems

• Industrial and factory automation equipment

• Multimedia synchronization and real-time networking

(Recycling, supply) Realtek RTL8221BI-VB-CG integrated 10/100/1000M/2.5G Ethernet transceiver 48QFN, if required, please contact Mr. Chen:
