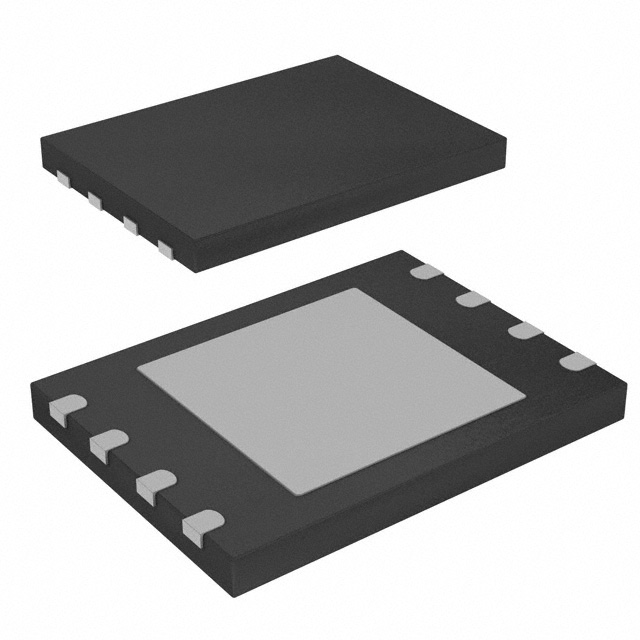

S25FL256LDPNFV013 is flash non-volatile memory,connects to a host system via a serial peripheral interface (SPI). Traditional SPI single bit serial input and output (single I/O or SIO) is supported as well as optional two bit (dual I/O or DIO) and four bit wide Quad I/O (QIO) and quad peripheral interface (QPI) commands. In addition, there are double data rate (DDR) read commands for QIO and QPI that transfer address and read data on both edges of the clock.

Features Of S25FL256LDPNFV013

• SPI with multi-I/O

- Clock polarity and phase modes 0 and 3

- Double data rate (DDR) option

- Quad peripheral interface (QPI) option

- Extended addressing: 24- or 32-bit address options

- Serial command subset and footprint compatible with S25FL-A, S25FL1-K, S25FL-P, S25FL-S and S25FS-S SPI families

- Multi I/O command subset and footprint compatible with S25FL-P, S25FL-S and S25FS-S SPI families

• Read

- Commands: normal, fast, dual I/O, Quad I/O, dualO, QuadO, DDR Quad I/O.

- Modes: Burst wrap, continuous (XIP), QPI

- Serial flash discoverable parameters (SFDP) for configuration information.

• Program architecture

- 256 bytes page programming buffer

- 256 Mb (32 MB)/128 Mb (16 MB), 3.0 V FL-L flash memory

- Program suspend and resume

• Erase architecture

- Uniform 4 KB sector erase

- Uniform 32 KB half block erase

- Uniform 64 KB block erase

- Chip erase

- Erase suspend and resume
