DLPA4000PFDR: DLP® PMIC/LED Driver for DMD, HTQFP-100

Model: DLPA4000PFDR

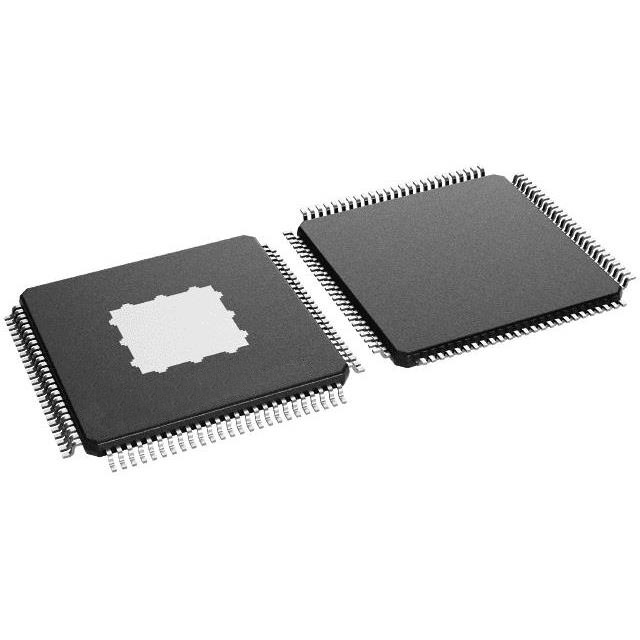

Package: HTQFP-100

Type: DLP Driver

Overview:

The DLPA4000PFDR is a highly integrated power management driver optimised for DLP® LED projector systems. It supports projectors with per-LED currents up to 32A and incorporates a high-side pump function. An integrated, efficient buck controller supplies power to the device.

The DLPA4000PFDR incorporates multiple auxiliary blocks. These auxiliary blocks enhance flexibility in LED projector designs. An 8-bit programmable buck converter can drive RGB projector fans or auxiliary power lines. Two LDOs can generate low-current power supplies up to 200mA. These LDOs are rated for operating voltages of 2.5V and 3.3V.

DLPA4000PFDR Product Features:

High-efficiency, high-current RGB LED driver (with high-side pump capability)

External buck FET driver, capable of driving currents up to 32A

External RGB switch driver

10-bit programmable current per channel

Inputs provided for selecting colour sequence RGB LEDs

Capable of generating DMD high-voltage power supply

Two high-efficiency buck converters for generating power to DLPC4422 controller and DMD

High-efficiency 8-bit programmable buck converter (PWR6) for fan driver applications or general-purpose use

Two LDOs for providing auxiliary voltages

Analogue multiplexer for measuring internal and external nodes

Protections: Thermal shutdown, thermal mode, battery low voltage, and under-voltage lockout (UVLO)
