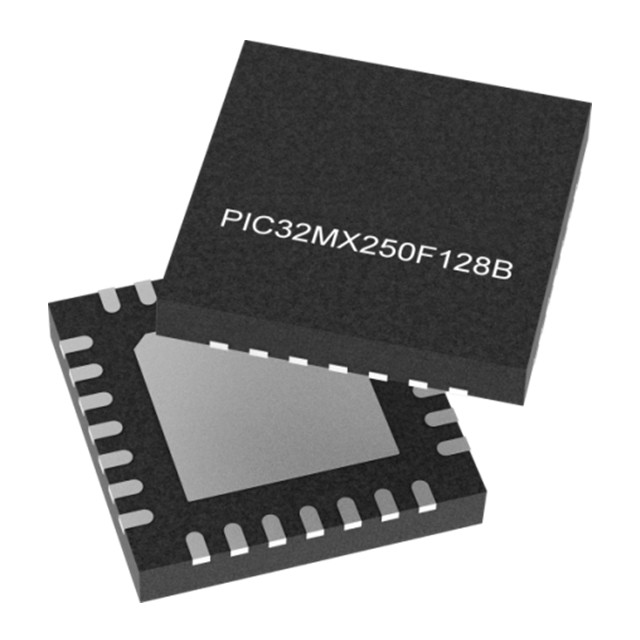

The PIC32MX250F128BT-50I/ML is a high-performance 32-bit microcontroller launched by Microchip, mainly applied in environmental control, USB devices, music playback and other fields. The following are its core features:

Up to four SPI/I2S interfaces for audio processing and playback

USB device/host /OTG

CAN 2.0B with a bit rate of 1Mbps is suitable for industrial/automotive applications

Enhanced parallel Master Port (PMP) for graphics or external memory

Supports mTouch® capacitive touch buttons and sliders

Up to five UArts, three analog comparators and two I2C™ buses

10-bit, 1Msps, 48-channel ADC

Peripheral pin selection (PPS) supports function remapping

Technical parameters

Core processor: MIPS32® M4K™

Kernel specification: 32-bit

Speed: 50MHz

Connection capabilities: I2C, IrDA, LINbus, PMP, SPI, UART/USART, USB OTG

Peripherals: power-off detection/reset, DMA, I2S, POR, PWM, WDT

I/O count: 19

Program storage capacity: 128KB (128K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 32K x 8

Voltage - Power supply (Vcc/Vdd) : 2.3V to 3.6V

Data converter: A/D 9x10b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device packaging: 28-QFN (6x6)

The typical applications of PIC32MX250F128BT-50I/ML cover fields such as industrial automation, smart home, medical equipment and the Internet of Things, for instance, real-time control systems, data acquisition systems and remote monitoring devices.
