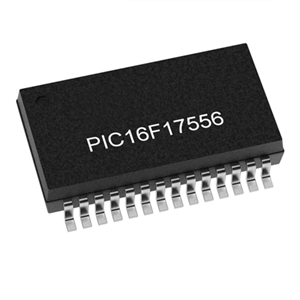

The PIC16F17556T-I/SS is an 8-bit microcontroller (MCU) launched by Microchip, featuring integrated operational amplifiers, high-speed 10-bit analog-to-digital converters (ADCs), 10-bit pulse width modulators (PWM), and comparators, among other characteristics. This MCU can achieve precise analog signal conditioning, motor control and power conversion. The PIC16F17556T-I/SS features flexible core-independent peripherals and low-power modes, making it highly suitable for industrial automation, sensor interfaces, lighting control, and portable devices.

Core parameters

Core processor: PIC

Kernel specification: 8 bits

Speed: 32MHz

Connection capabilities: I2C, LINbus, RS-232, RS-485, SPI, UART/USART

Peripherals: Undervoltage detection/reset, POR, PWM, WDT

I/O count: 25

Program storage capacity: 28KB (28K x 8)

Program memory type: Flash memory

EEPROM capacity: 256 x 8

RAM size: 2K x 8

Voltage - Power supply (Vcc/Vdd) : 1.8V to 5.5V

Data converter: A/D 24x12b SAR; D/A 2x10b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device packaging: 28-SSOP

Typical applications

Motor control system

Power conversion and management

Sensor interface and signal conditioning

Lighting control

Consumer and industrial automation

Portable and battery-powered devices
