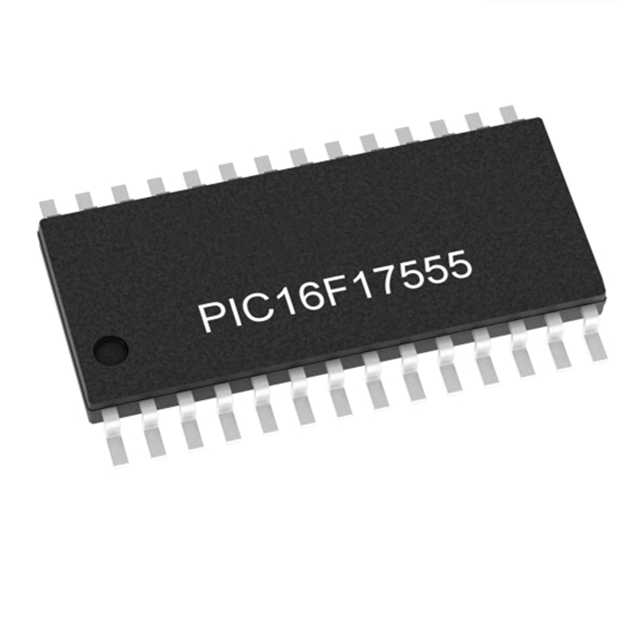

The PIC16F17555T-I/SO microcontroller is a low-power 8-bit microcontroller produced by Microchip, featuring an integrated operational amplifier, a high-speed 10-bit analog-to-digital converter (ADC), a 10-bit pulse width modulator (PWM), and a comparator. This MCU is designed to provide high performance and energy efficiency for a variety of embedded applications.

The PIC16F17555T-I/SO has the following core specifications:

Core processor: PIC

Kernel specification: 8 bits

Speed: 32MHz

Connection capabilities: I2C, LINbus, RS-232, RS-485, SPI, UART/USART

Peripherals: Undervoltage detection/reset, POR, PWM, WDT

I/O count: 24

Program storage capacity: 14KB (14K x 8)

Program memory type: Flash memory

EEPROM capacity: 128 x 8

RAM size: 1K x 8

Voltage - Power supply (Vcc/Vdd) : 1.8V to 5.5V

Data converter: A/D 24x12b; D/A 2x10b

Oscillator types: external, internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device packaging: 28-SOIC

Typical application fields

The PIC16F17555T-I/SO is widely used in the following fields:

Motor control system

Power conversion and management

Sensor interface and signal conditioning

Lighting control

Consumer and industrial automation

Portable and battery-powered devices
