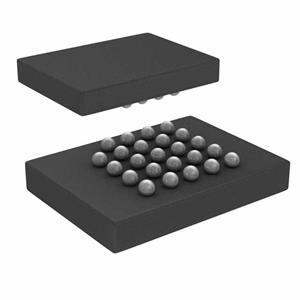

S70FS01GSDSBHB213 is a Quad SPI flash memory product, which is a high performance serial peripheral interface especially suitable for application scenarios that require high throughput, such as multimedia processing and on-chip memory scarcity.

Features Of S70FS01GSDSBHB213

• SPI with multi-I/O

- SPI clock polarity and phase modes 0 and 3

- DDR

- Extended addressing: 24- or 32-bit address options

- Serial command subset and footprint compatible with S25FL1-K, S25FL-P, and S25FL-S SPI families

- Multi I/O command subset and footprint compatible with S25FL-P, S25FL1-K, and S25FL-S SPI families

• Read

- Commands: Normal, Fast, Dual I/O, Quad I/O, DDR Quad I/O

- Modes: Burst wrap, Quad peripheral interface (QPI)

- Serial flash discoverable parameters (SFDP) and common flash interface (CFI), for configuration information.

• Program

- 256 or 512 bytes page programming buffer

- Program suspend and resume

- Automatic error correcting code (ECC) – Internal hardware ECC with single bit error correction

• Erase

- Hybrid sector option

• Physical set of eight 4 KB sectors and one 224 KB sector at the top or bottom of address space with all

remaining sectors of 256 KB

- Uniform sector option

• Physical uniform 256 KB blocks

- Erase suspend and resume

- Erase status evaluation

- 100,000 Program-erase cycles on any sector, minimum

- 20 year data retention, minimum

• Security features

- OTP array of 1024 bytes

- Block protection:

• Status Register bits to control protection against program or erase of a contiguous range of sectors.

• Hardware and software control options

- Advanced sector protection (ASP)

• Individual sector protection controlled by boot code or password

• Option for password control of read access

• Technology

- 65-nm MIRRORBIT™ Technology with Eclipse architecture

• Single supply voltage with CMOS I/O

- 1.7 V to 2.0 V
