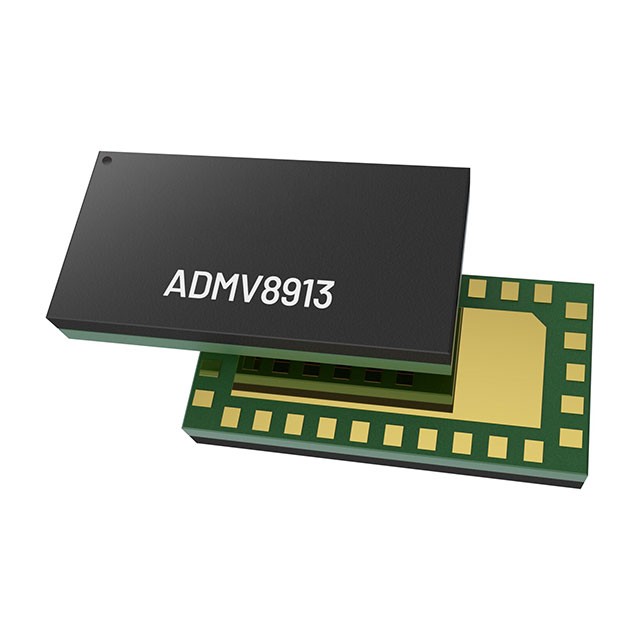

The ADMV8913SCCZ-EP is a complete monolithic microwave integrated circuit with selectable digital operating frequencies. The device integrates a high-pass filter and a low-pass filter, enabling passband response in the 7 to 12 GHz frequency range.

The ADMV8913SCCZ-EP employs a flexible architecture that allows independent control of the 3 dB cutoff frequency (f3dB) for both the high-pass and low-pass filters. Each filter's digital logic control has a 4-bit width (16 states), adjusting f3dB by controlling on-chip reactive components. Typical insertion loss is 5 dB, with broadband suppression of 35 dB, making it ideal for minimising system harmonics.

This tunable filter can serve as a compact alternative to large switch filter banks and cavity-tuned filters, providing a dynamically adjustable solution for advanced communication applications.

ADMV8913SCCZ-EP Specifications

Frequency: 9.25 GHz centre frequency

Bandwidth: 5.3 GHz

Filter type: Low-pass

Insertion Loss: 5.3 dB

Mounting Type: Surface Mount

Package/Housing: 30-VFLGA

Size/Dimensions: 0.236‘ L x 0.118’ W (6.00 mm x 3.00 mm)

Height (Max): 0.037" (0.95 mm)

ADMV8913SCCZ-EP Features

Digitally adjustable, ±3 dB cutoff frequency

Optimised broadband suppression: 35 dB

Single-chip replacement for discrete filter arrays

Compact 6.00 mm × 3.00 mm × 0.89 mm LGA package

Enhanced Product Features

Supports defence and aerospace applications (AQEC standards)

Military temperature range (e.g., −55°C to +105°C)

Controlled manufacturing baseline

Single assembly/test site

Single manufacturing site

Enhanced product change notification

Qualification data available upon request

ADMV8913SCCZ-EP Applications

Test and measurement equipment

Military radar and electronic warfare/electronic countermeasure systems

Satellite communications

Industrial and medical equipment
