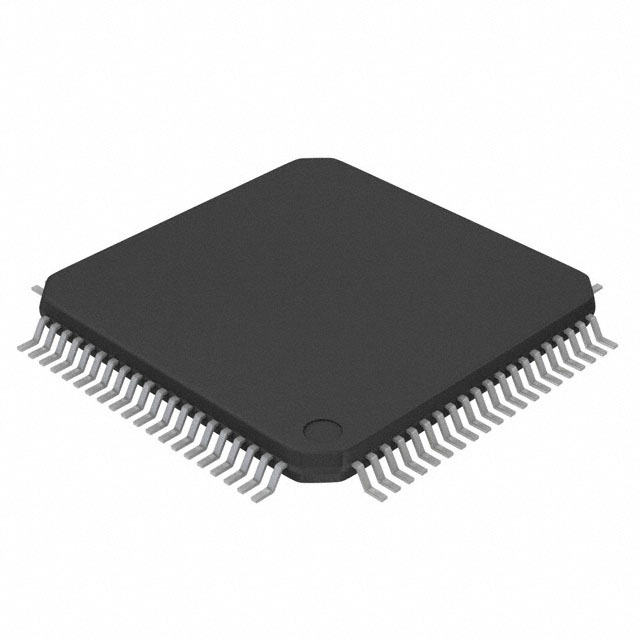

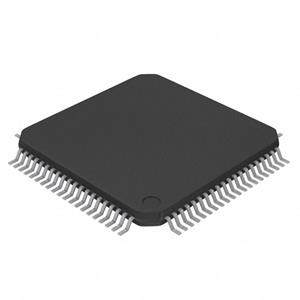

CY9BF322MPMC1-G-JNE2: 72MHz, 32-bit ARM® Cortex®-M3 FM3 MB9B320M microcontroller IC, LQFP-80

Product Details:

Model: CY9BF322MPMC1-G-JNE2

Series: FM3 MB9B320M

Package: LQFP-80 (14x14)

Type: 32-bit Microcontroller - MCU

Core Processor: ARM® Cortex®-M3

Core Specifications: 32-bit

Speed: 72MHz

I/O Count: 65

Program Storage Capacity: 160KB (160K x 8)

RAM Size: 16K x 8

Voltage - Power Supply (Vcc/Vdd): 2.7V to 5.5V

Data Converter: A/D 26x12b; D/A 2x10b

Operating Temperature: -40°C to 105°C (TA)

CY9BF322MPMC1-G-JNE2 Product Features:

32-bit Arm® Cortex®-M3 core

Processor version: r2p1

Maximum operating frequency: 72 MHz

Integrated nested vector interrupt controller (NVIC): 1 non-maskable interrupt (NMI) and 48 peripheral interrupts, with 16 priority levels

24-bit system timer (Sys Tick): System timer for operating system task management

Supports USB 2.0 full-speed mode

Supports up to 6 endpoints

Endpoint 0 is for control transfers

Endpoints 1 and 2 can be configured for bulk transfers, interrupt transfers, or isochronous transfers

Endpoints 3 to 5 can be configured for bulk transfers or interrupt transfers

Endpoints 1 to 5 all use a dual-buffer structure.

Analogue-to-digital converter (maximum 26 channels)

12-bit analogue-to-digital converter

Successive approximation type

Built-in 2 units

Conversion time: 0.8 μs @ 5 V

Supports priority conversion (2 priority levels)

Scan conversion mode

Built-in FIFO for conversion data storage (scan conversion: 16 steps, priority conversion: 4 steps)
