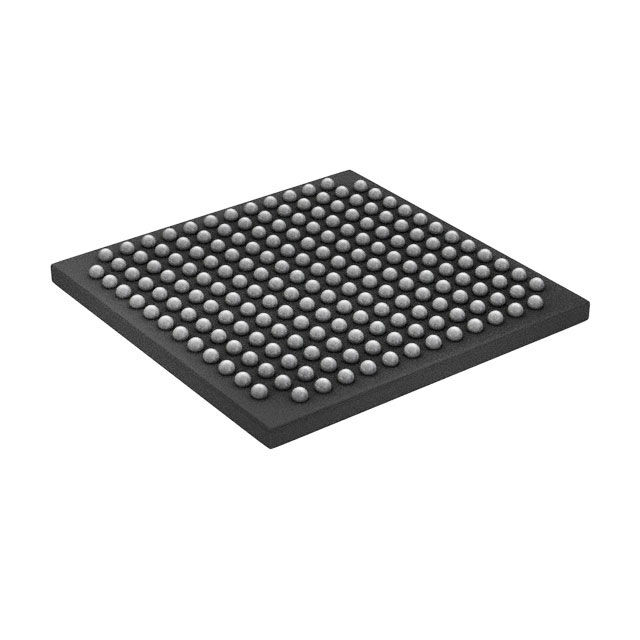

CY9BF317TBGL-GK7E1: 144MHz, 32-bit ARM® Cortex®-M3 FM3 MB9B310T microcontroller IC, FBGA-192

Product Details:

Model: CY9BF317TBGL-GK7E1

Series: FM3 MB9B310T

Package: FBGA-192 (12x12)

Type: 32-bit Microcontroller - MCU

Core Processor: ARM® Cortex®-M3

Core Specifications: 32-bit

Speed: 144MHz

I/O Count: 154

Program Memory Capacity: 768KB (768K x 8)

Program Memory Type: Flash

RAM Size: 96K x 8

Voltage - Supply (Vcc/Vdd): 2.7V to 5.5V

Data Converter: A/D 32x12b

Operating Temperature: -40°C to 85°C (TA)

CY9BF317TBGL-GK7E1 Product Features:

32-bit ARM® Cortex®-M3 Core

Processor Version: r2p1

Maximum Operating Frequency: 144MHz

Memory Protection Unit (MPU): Enhances the reliability of embedded systems.

Nested Vector Interrupt Controller (NVIC): Supports 1 channel NMI (non-maskable interrupt) and 48 channels of peripheral interrupts. Supports 16 interrupt priorities. 24-bit System Timer (Sys Tick): This system timer is used to manage operating system tasks.

On-chip memory

Maximum 1MB

Built-in 16KB Flash accelerator with usage tracking buffer memory

External Bus Interface

Supports SRAM, NOR, and NAND flash memory chips

Supports up to 8 chips

8/16-bit data width

Maximum 25-bit address width

Maximum address range: up to 256Mb

Supports address/data multiplexing

Supports external RDY functionality
