The R7F701437EAFE is a high-end automotive microcontroller (MCU) launched by Renesas, belonging to the RH850/D1S series. It is mainly designed for the instrument panel system of hybrid electric vehicles (HEV/EV), supporting simplified instrument systems or small 2D drawing scenarios. The RH850/D1S adopts a 40nm process to reduce leakage power consumption and supports multi-core technology to balance high performance and low power consumption requirements, making it suitable for strict energy consumption control in vehicle-mounted systems.

Technical parameters of R7F701437EAFE

Core processor: RH850G3M

Kernel specification: 32-bit

Speed: 120MHz

Connection capabilities: CANbus, CSI, I2C, LINbus, UART/USART

Peripherals: DMA, I2S, LCD, PWM, temperature sensor, WDT

Program storage capacity: 1MB (1M x 8)

Program memory type: Flash memory

EEPROM capacity: 32K x 8

RAM size: 144K x 8

Voltage - Power supply (Vcc/Vdd) : 3V to 5.5V

Data converter: A/D 16x12b

Oscillator type: Internal

Operating temperature: -40°C to 150°C (TJ)

Installation type: Surface mount type

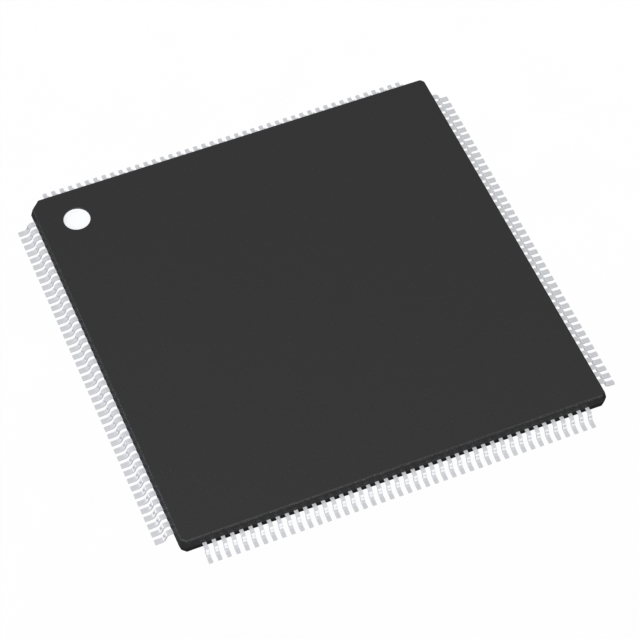

Package: 144-LFQFP (20x20)

Application scenarios

The R7F701437EAFE is mainly applied in automotive instrument panels, body control systems and industrial automation fields, providing high-reliability and low-power consumption solutions.
