ZMID5201AE1R is an inductive position sensor IC with analog output launched by (Renesas), used for absolute rotation and linear motion sensing in automotive applications. The following are its key features:

Inductive principle

The rotation sensing can reach 360º

Analog output with programmable limitations

Overvoltage, reverse polarity, ESD and short-circuit protection

10-bit resolution

Power supply or ground loss detection

Meet the requirements of redundant design

Programmable linear correction

Adaptive gain control supports multiple coil designs

Diagnostic functions that support ISO26262

Maximum support for ASIL-B

Overvoltage and reverse polarity protection up to ±18V

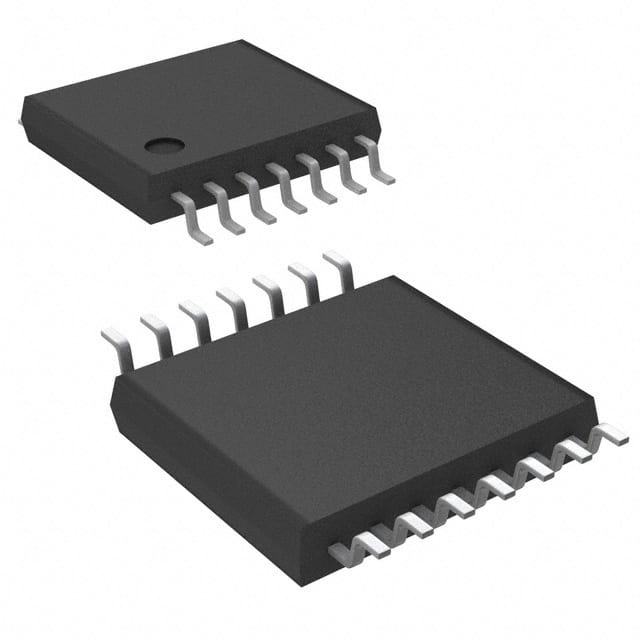

Small 14-TSSOP package

The ZMID5201AE1R uses the physical principles of coil induction and eddy current to detect the position of a metal target sliding or rotating above a coil group, which consists of one transmitting coil and two receiving coils. These three coils are usually printed on the printed circuit board (PCB) in the form of copper wires. Their arrangement causes the transmitting coil to induce a secondary voltage in the receiving coil, which depends on the position of the metal target above the coil. After demodulation and processing the secondary voltage from the receiving coil, a signal indicating the position of the metal target on the coil can be obtained. ZMID5201AE1R fully complies with the automotive standard AEC-Q100, Class 0, with a maximum ambient temperature of 150°C.

Typical applications

The ZMID5201AE1R sensor is suitable for position monitoring scenarios in automotive electronic control systems, such as motor control and transmission system detection.
