Service Telephone:86-755-83294757
Trade Name:Optical Isolation Amplifiers
Brand:Renesas
Particular Year:25+
Package:SDIP8
Delivery Date:New and original
Stock: 2000pcs

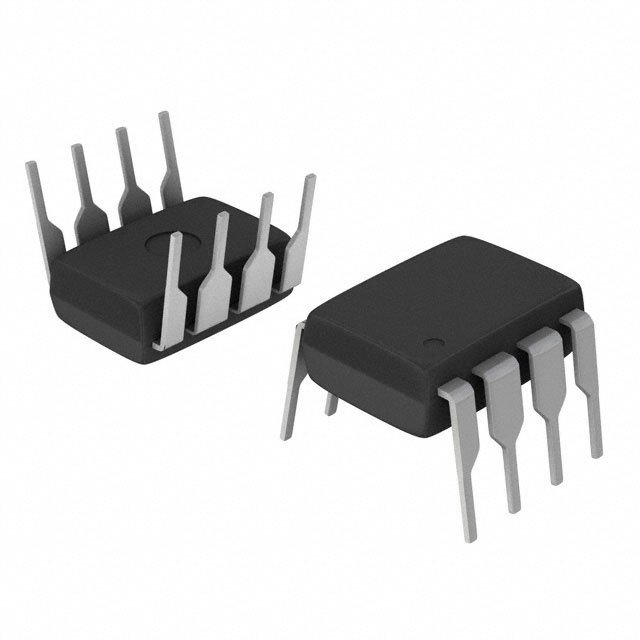

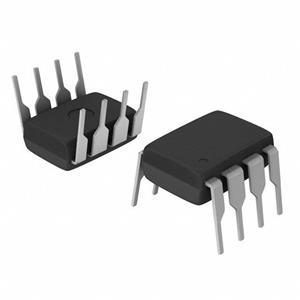

RV1S9356ACCSP-120V is a high-precision isolated current sensor launched by (Renesas), specifically designed for industrial motor control. It features the following core characteristics
Manchester code output in compliance with the IEEE 802.3 standard
High signal-to-noise ratio (typical value of 88dB)
Gain error (GE = ±0.5% @25 °C)
Operating environment temperature (TA = -40 to 125 °C)
Nonlinearity (INL = ±15 LSB
Input offset voltage (VOS = ±1 mV)
The relationship between input offset voltage drift and temperature (dVos/dTA = 1.0 μV/°C MAX)
Manchester code clock frequency (fMANCLK = 20MHz TYP.)
High common-mode transient immunity (CMTI = 50 kV/μs MIN.)
Long creepage distance (minimum 8mm)
Embossed tape product: RV1S9356ACCSP-120x#KC0:2000 sheets/roll
Lead-free products
Safety standards
UL certification: No. UL1577, dual protection
VDE certification: DIN EN IEC 60747-5-5, DIN EN IEC 62368-1, Reinforced insulation (optional)
Description
The RV1S9356ACCSP-120V is an optically isolated Δ-Σ modulator that includes A high-precision A/D converter with a 20MHz internal clock and converts the analog voltage input into a 1-bit data stream. This modulator provides 14 bits (TYP.) of significant bits (ENOB) and comes with a Sinc3 digital filter. The RV1S9356ACCSP-120V is specifically designed for high common-mode transient immunity (CMTI), high signal-to-noise ratio and high linearity (low nonlinearity), making it highly suitable for motor current detection in industrial instruments. It can perform high-precision measurements in harsh noise environments.
Application field
Ac servo, inverter
Solar inverter
Measuring equipment
Model
Brand
Package
Quantity
Describe
BROADCOM
SO-8
2000
±50mV Optically Isolated Sigma-Delta Modulator with Wide Operating Temperature
