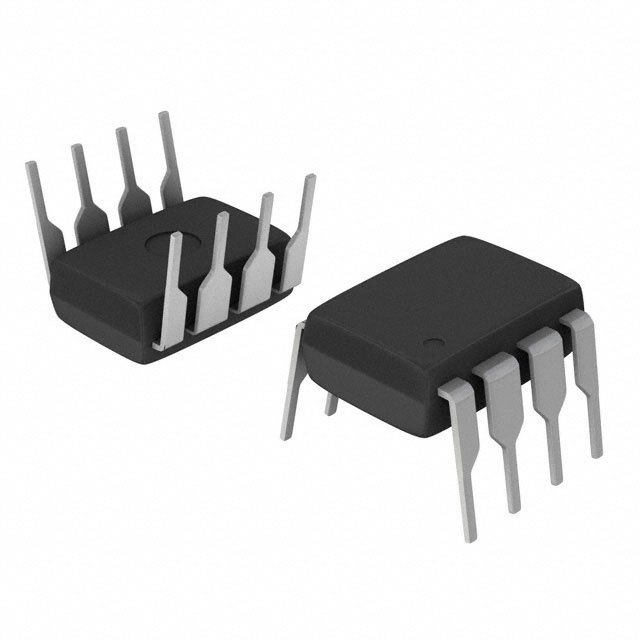

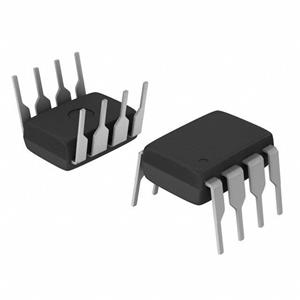

The RV1S9356ACCSP-120C is an optically isolated Δ-Σ modulator that includes A high-precision A/D converter with a 20MHz internal clock and converts the analog voltage input into a 1-bit data stream. The RV1S9356ACCSP-120C offers 14 bits (TYP.) of significant bits (ENOB) and comes with a Sinc3 digital filter. The RV1S9356ACCSP-120C is specifically designed for high common-mode transient immunity (CMTI), high signal-to-noise ratio and high linearity (low nonlinearity). The RV1S9356ACCSP-120C is suitable for motor current detection in industrial instruments and can perform high-precision measurements in harsh noise environments.

Key features

Manchester code output in compliance with the IEEE 802.3 standard

High signal-to-noise ratio (typical value of 88dB)

Gain error (GE = ±0.5% @25 °C)

Operating environment temperature (TA = -40 to 125 °C)

Nonlinearity (INL = ±15 LSB

Input offset voltage (VOS = ±1 mV)

The relationship between input offset voltage drift and temperature (dVos/dTA = 1.0 μV/°C MAX)

Manchester code clock frequency (fMANCLK = 20MHz TYP.)

High common-mode transient immunity (CMTI = 50 kV/μs MIN.)

Long creepage distance (minimum 8mm)

Embossed tape product: RV1S9356ACCSP-120x#KC0:2000 sheets/roll

Lead-free products

Safety standards

UL certification: No. UL1577, dual protection

VDE certification: DIN EN IEC 60747-5-5, DIN EN IEC 62368-1, Reinforced insulation (optional)

Target application

Ac servo, inverter

Solar inverter

Measuring equipment
