Trade Name:IKFW75N65EH5XKSA1
Data Manual:IKFW75N65EH5XKSA1.pdf
Brand:INFINEON
Particular Year:23+
Package:TO-247-3
Delivery Date:New and Original
Stock: 1000pcs

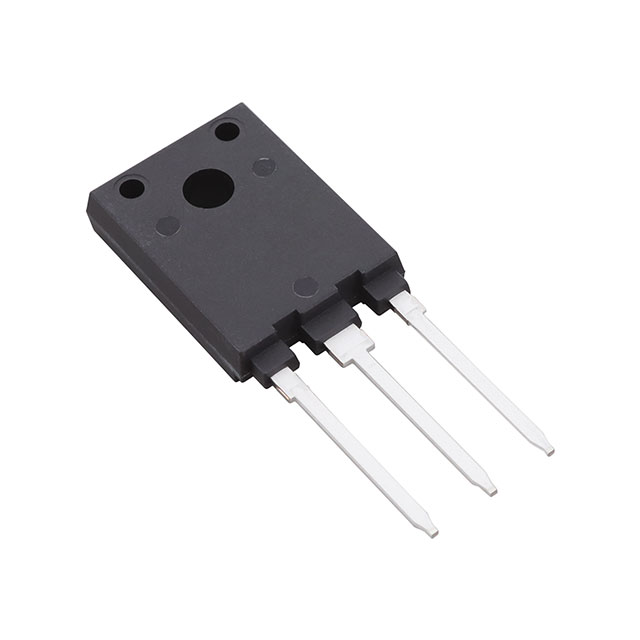

IKFW75N65EH5XKSA1 650 V, 75 A IGBT in TO-247 Premium Isolation Package.
Hard-switching 650 V, 75 A TRENCHSTOP™ 5 H5 IGBT discretes in TO-247 advanced isolation packages are the most efficient discrete IGBT technology on the market and are ideal for customers seeking superior efficiency and power density.
This package eliminates the need for isolation material and allows for high power density, optimal thermal performance and minimal cooling intensity due to an efficient and reliable heat sink path from the IGBT chip to the heat sink.
Product Attributes
IGBT Type: Trench Field Cutoff
Voltage - Collector Breakdown (max): 650 V
Current - Collector (Ic) (max): 80 A
Current - Collector pulse (Icm): 240 A
Vce(on) at varying Vge, Ic (max): 2.1V @ 15V, 60A
Power - Max: 148 W
Switching Energy: 1.8mJ (on), 600µJ (off)
Input Type: Standard
Gate Charge: 144 nC
Td (On/Off) at 25°C: 30ns/206ns
Test Conditions: 400V, 60A, 12mOhm, 15V
Reverse Recovery Time (trr): 75 ns
Operating Temperature: -40°C ~ 175°C (TJ)
Mounting Type: Through Hole
Package/Housing : TO-247-3
Supplier Device Package: PG-HSIP247-3-2
Base Product Number: IKFW75
Potential applications:
