Infineon's 650 V 40 A high-speed switch TRENCHSTOP™ 5, combined with the full current rating Rapid 1 fast pole soft anti-parallel diode in a D2Pak (TO263) package, redefines the "best-in-class" IGBT by offering extremely high efficiency for hard-switching applications.This new series is a major breakthrough in IGBT innovation to meet the future needs of the market for high efficiency. This new family represents a major breakthrough in IGBT innovation to meet future market demands for high efficiency.

Characterisation

650 V breakdown voltage

Comparison to Infineon's industry leading "HighSpeed 3" series

Qg factor 2.5 times lower

Switching loss factor reduced by a factor of 2

200 mV lower VCEsat

With Infineon's very fast silicon diode technology

COES/EOSS low

Mild positive temperature coefficient VCEsat

Vf temperature stabilisation

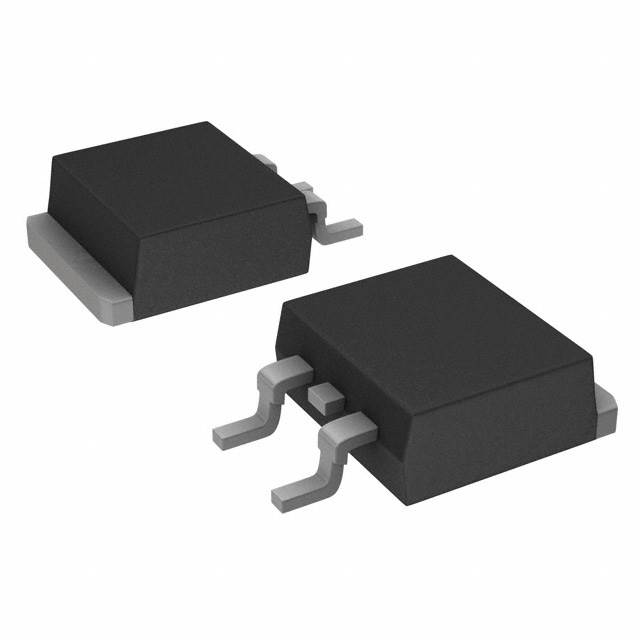

IKB40N65EF5ATMA1 Product Attributes

Series: TrenchStop™ 5

IGBT Type: Trench Field Cutoff

Voltage - Collector Breakdown (Max): 650 V

Current - Collector (Ic) (Max): 74 A

Current - Collector Pulse (Icm): 160 A

Vce(on) at varying Vge, Ic (max): 2.1V @ 15V, 40A

Power - Max: 250 W

Switching Energy: 420µJ (on), 100µJ (off)

Input Type: Standard

Gate Charge: 95 nC

Td (On/Off) at 25°C: Value 22ns/160ns

Test Conditions: 400V, 40A, 15 Ohm, 15V

Reverse Recovery Time (trr): 83 ns

Operating Temperature: -40°C ~ 175°C (TJ)

Mounting Type: Surface Mount

Package/Housing: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Supplier Device Package: PG-TO263-3

Application Areas

Electric vehicle fast charging

Power Supplies

Solar system solutions
