The CC3350ENJARSBR is a SimpleLink™ dual-band Wi-Fi 6 and Bluetooth Low energy chip from (TI), which supports the 2.4GHz and 5GHz bands. The following are its core features:

Wi-Fi 6 (802.11ax)

The CC33x1 device provides low-power Bluetooth 5.4

It is a companion IC for any processor or MCU host capable of running the TCP/IP protocol stack

Integrating 2.4GHz and 5GHz PA, it can provide a complete wireless solution with an output power of up to +20.5dBm.

Operating temperature: -40°C to +105°C

The application throughput is as high as 50Mbps

The CC3350ENJARSBR offers Wi-Fi 6 and BLE, while remaining compatible with Wi-Fi 4 (802.11a /b/g/n) and Wi-Fi 5 (802.11ac). The CC3350ENJARSBR device is the 10th generation connection combination chip of (TI). Therefore, the CC3350ENJARSBR is designed based on mature technology. These devices are highly suitable for cost-sensitive embedded applications equipped with Linux or RTOS hosts running TCP/IP.

In addition, the CC3350ENJARSBR brings the efficient performance of Wi-Fi 6 into the embedded device applications of the Internet of Things (IoT), and features a small PCB package size and a highly optimized bill of materials.

Basic parameters

Type: TxRx only

Radio Frequency Series/Standard: WiFi

Protocol: 802.11b/g/n/ax

Modulation: OFDM

Frequency: 2.4GHz, 5GHz

Data rate (maximum) : 50Mbps

Power - Output: 20.5dBm

Sensitivity: -

Storage capacity: -

Serial interfaces: HCI, SDIO, SPI, UART

Voltage - Power supply: 1.62V to 1.98V, 3V to 3.6V

Current - Reception: 0mA to 62mA

Current transmission: 92mA to 270mA

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

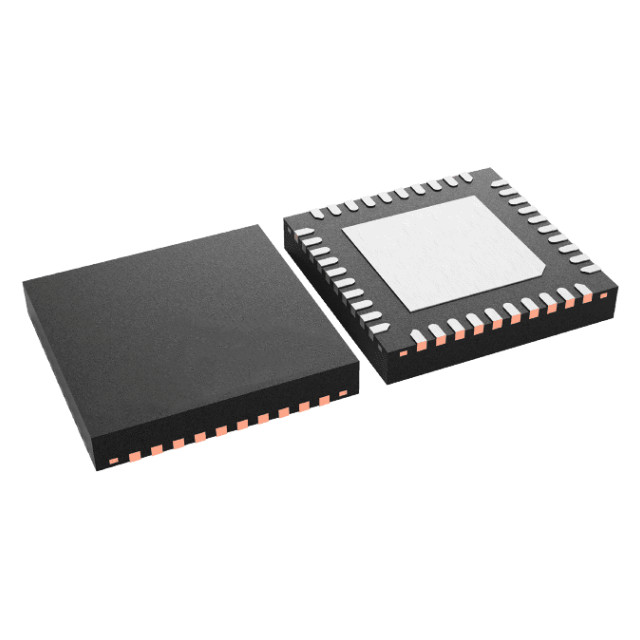

Package/Housing: 40-WQFN (5x5)

The target applications of CC3350ENJARSBR include iot devices, embedded systems and other scenarios with limited requirements for power consumption and space.
