EFM32PG26B500F3200IM48-B is a 32-bit microcontroller (MCU) based on ARM Cortex-M33, with a speed of up to 80 MHz. This MCU is based on the secure and ultra-low power xG26 platform (which features innovative low-power functions and outstanding performance), making it an ideal choice for a wide range of battery-powered or power-sensitive applications. This device has the following core characteristics:

The software is compatible with MCU versions

Wireless SoC platform

80MHz ARM Cortex-M33 with LCD controller

Fast inference at the edge with low power consumption

Equipped with a hardware AI/ML accelerator

It can achieve low-power consumption and high-performance embedded Internet of Things applications

Furthermore, The EFM32PG26B500F3200IM48-B includes 3200 kB of flash memory, 512 kB of RAM, 28 GPIOs, a 160-segment LCD controller, a 16-channel ADC (with the option of 12 or 16-bit resolution), two analog comparators, and a 2-channel one VDAC and multiple communication interfaces, it adopts a compact QFN48 package and has excellent security with the help of Secure Vault™.

Technical specifications

Core processor: ARM® Cortex®-M33F

Kernel specification: 32-bit

Speed: 80MHz

Connection capabilities: I2C, IrDA, smart card, SPI, UART/USART

Peripherals: Encryption - AES, DMA, I2S, numeric keypad, LCD, BOR.PWM, SHA, temperature sensor, TRNG, WDT

I/O count: 28

Program storage capacity: 3.125MB (3.125M x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 512K x 8

Voltage - Power Supply (Vcc/Vdd) : 1.71V to 3.8V

Data converter: A/D 4x16b; D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C to 125°C

Installation type: Surface mount type

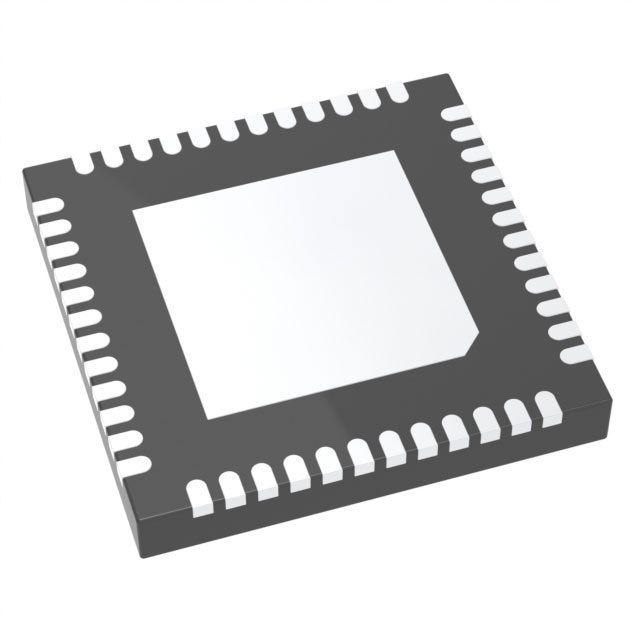

Package: 48-QFN (6x6)

Typical applications

The EFM32PG26B500F3200IM48-B 32-bit MCU is highly suitable for low-power and high-performance applications, including embedded Internet of Things (IoT), smart homes, smart cities, as well as industrial and general-purpose uses.
