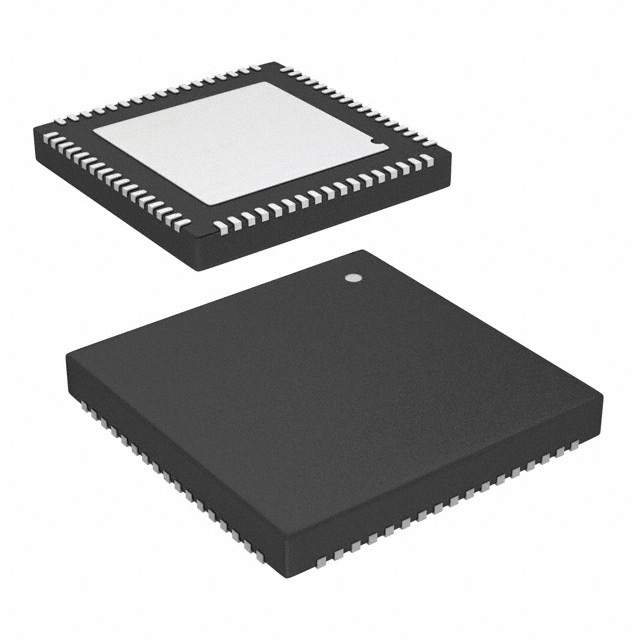

EFR32MG26B420F3200IM68-B is a multi-protocol wireless system-on-chip (SoC) launched by SILICON, mainly targeted at the development of Internet of Things (IoT) devices. The following are its key parameters:

Type: TxRx + MCU

Radio Frequency series/standards: 802.15.4, Bluetooth

Protocol: Bluetooth v5.3, Zigbee®

Modulation: 2FSK, 2GFSK, DSSS, GMSK, MSK, O-QPSK

Frequency: -

Data rate (maximum) : 2Mbps

Power - Output: 19.5dBm

Sensitivity: -105.9dBm

Storage capacity: 3.125MB flash memory, 512kB RAM

Serial interfaces: ADC, GPIO, I2C, I2S, IrDA, JTAG, PWM, SPI, UART, USART

GPIO: 49

Voltage - Power supply: 1.71V to 3.8V

Current - Reception: 5.4mA to 6.2mA

Current - transmission: 5.9mA to 152.7mA

Operating temperature: -40°C to 125°C

Installation type: Surface mount type

Packaging/Housing: 68-QFN

With key features such as high-performance 2.4GHz RF, low current consumption, AI/ML hardware accelerators and Secure Vault™, developers can create intelligent, robust and energy-efficient products to avoid remote and local network attacks. The ARM Cortex®-M33 operates at a frequency of up to 78 MHz, has a flash memory of up to 3 MB, and a RAM of up to 512 kB. It enables more complex applications and provides headroom for Matter over Thread. The target applications of EFR32MG26B420F3200IM68-B include gateways and hubs, LED lighting, switches, sensors, door locks, glass breakage detection, predictive maintenance, wake word detection, etc.
