The EFR32MG26B420F3200IM48-B multi-protocol wireless SoC features a 32-bit Arm® Cortex®-M33 core, offering a robust and energy-efficient design. This product offers 3200 kB of flash memory and 512 kB of RAM, featuring first-class RF performance, including an 802.15.4 receiving sensitivity of -105.4 dBm and an output power of 19.5 dBm, with low power consumption.

In addition to having multiple cores, the EFR32MG26B420F3200IM48-B also features an AI/ML hardware accelerator, which can reduce the time and power required for edge AI/ML inference, including predictive maintenance, glass breakage detection, and even wake word detection.

The target applications of EFR32MG26B420F3200IM48-B include gateways and hubs, LED lighting, switches, sensors, door locks, glass breakage detection, predictive maintenance, wake word detection, etc.

Key parameters

Type: TxRx + MCU

Radio Frequency series/standards: 802.15.4, Bluetooth

Protocol: Bluetooth v5.3, Zigbee®

Modulation: 2FSK, 2GFSK, DSSS, GMSK, MSK, O-QPSK

Frequency: -

Data rate (maximum) : 2Mbps

Power - Output: 19.5dBm

Sensitivity: -105.9dBm

Storage capacity: 3.125MB flash memory, 512kB RAM

Serial interfaces: ADC, GPIO, I2C, I2S, IrDA, JTAG, PWM, SPI, UART, USART

GPIO: 32

Voltage - Power supply: 1.71V to 3.8V

Current - Reception: 5.4mA to 6.2mA

Current - transmission: 5.9mA to 152.7mA

Operating temperature: -40°C to 125°C

Installation type: Surface mount type

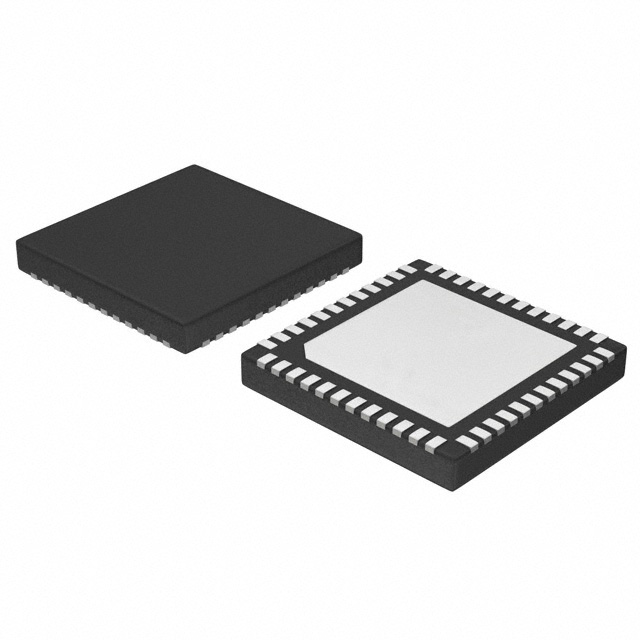

Packaging/Housing: 48-QFN
