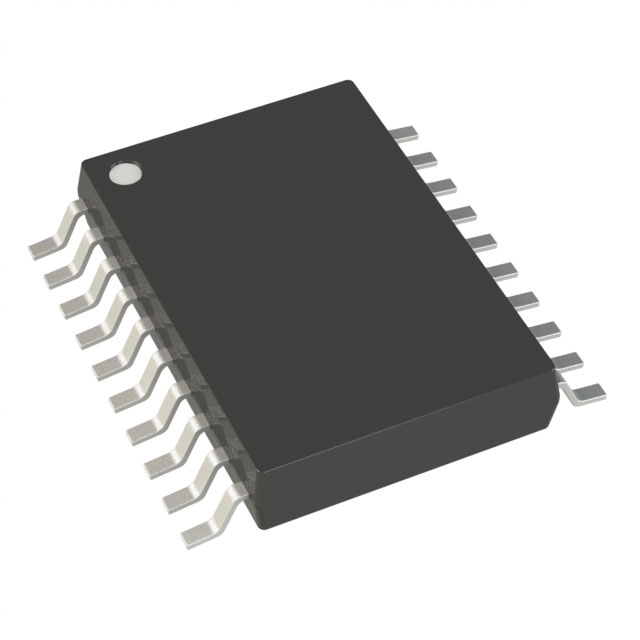

M0L1305QDGS20RQ1 microcontrollers (MCUs) is part of the MSP highly-integrated, ultra-low-power 32-bit MSPM0 MCU family based on the enhanced Arm Cortex-M0+ core platform operating at up to 32-MHz frequency. These cost-optimized MCUs offer high-performance analog peripheral integration, support extended temperature ranges from -40°C to 125°C, and operate with supply voltages ranging from 1.62 V to 3.6 V.

Features Of M0L1305QDGS20RQ1

AEC-Q100 qualified for automotive applications

Temperature grade 1: –40°C to +125°C, TA

Functional Safety Quality-Managed

Documentation available to aid in functional safety system design

Core

Arm 32-bit Cortex-M0+ CPU, frequency up to 32 MHz

Operating characteristics

Wide supply voltage range: 1.62 V to 3.6 V

Memories

Up to 64KB of flash

Up to 4KB of SRAM

High-performance analog peripherals

One 12-bit 1.68-Msps analog-to-digital converter (ADC) with up to 10 total external channels

Configurable 1.4-V or 2.5-V internal ADC voltage reference (VREF)

Two zero-drift, zero-crossover chopper operational amplifiers (OPA)

0.5-µV/°C drift with chopping

Integrated programmable gain stage (1-32x)

One general-purpose amplifier (GPAMP)

One high-speed comparator (COMP) with 8-bit reference DAC

32-ns propagation delay

Low power mode down to <1-µA

Programmable analog connections between ADC, OPAs, COMP, and DAC

Integrated temperature sensor

Optimized low-power modes

RUN: 71 µA/MHz (CoreMark)

STOP: 151 µA at 4 MHz and 44 µA at 32 kHz

STANDBY: 1.0 µA with 32-kHz 16-bit timer running, SRAM/registers fully retained, and 32MHz clock wakeup in 3.2µs

SHUTDOWN: 61 nA with IO wakeup capability

Intelligent digital peripherals

3-channel DMA controller

3-channel event fabric signaling system

Four 16-bit general-purpose timers, each with two capture/compare registers supporting low-power operation in STANDBY mode, supporting a total of 8 PWM channels

Windowed watchdog timer

Enhanced communication interfaces

Two UART interfaces; one supporting LIN, IrDA, DALI, Smart Card, Manchester and both supporting low-power operation in STANDBY

Two I2C interfaces; one supporting FM+ (1 Mbit/s) and both supporting SMBus, PMBus, and wakeup from STOP

One SPI supporting up to 16 Mbit/s

Clock system

Internal 4- to 32-MHz oscillator with ±1.2% accuracy (SYSOSC)

Internal 32-kHz low-frequency oscillator with ±3% accuracy (LFOSC)

Data integrity

Cyclic redundancy checker (CRC-16 or CRC-32)

Flexible I/O features

Up to 28 GPIOs

Two 5-V-tolerant open-drain IOs with fail-safe protection

Applications Of M0L1305QDGS20RQ1

Automotive body electronics and Lighting

Automotive Gateway

Steering Wheel Systems

Automotive Motor Control

DC to AC Inverters

Automotive Interior Lighting

Door handle modules

Kick to open modules

Vehicle Occupancy Detection

Seat Comfort Module
