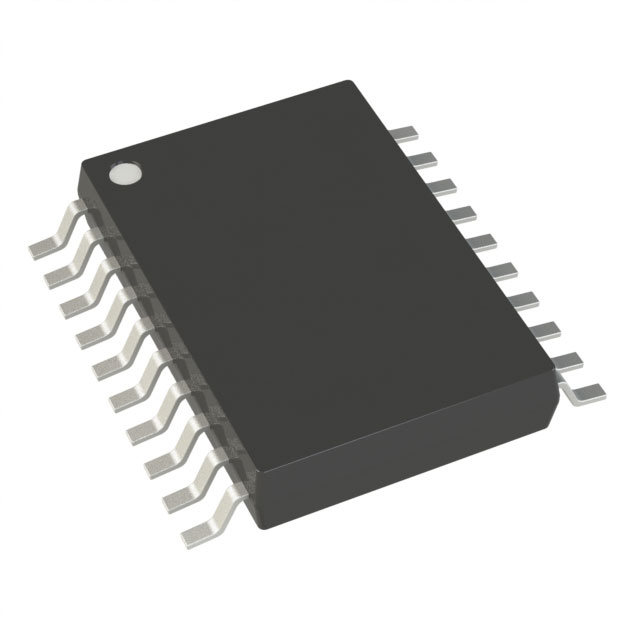

M0G3106QDGS20RQ1 microcontrollers (MCUs) are part of the MSP highly-integrated, ultra-low-power 32-bit MCU family based on the enhanced Arm Cortex-M0+ 32-bit core platform operating at up to 80MHz frequency. The cost-optimized MCUs offer high-performance analog peripheral integration, support extended temperature ranges from -40°C to 125°C, and operate with supply voltages ranging from 1.62V to 3.6V.

Features Of M0G3106QDGS20RQ1

• Core

– Arm® 32-bit Cortex®-M0+ CPU with memory protection unit, frequency up to 80MHz

• Functional Safety Quality-Managed

– Functional Safety Manual and FMEDA available to aid in functional safety system design

• Operating characteristics

– Extended temperature: –40°C up to 125°C

– Wide supply voltage range: 1.62V to 3.6V

• Memories

– Up to 128KB of flash memory with built-in error correction code (ECC)

– Up to 32KB of SRAM with hardware parity

• High-performance analog peripherals

– Two simultaneous sampling 12-bit 4Msps analog-to-digital converters (ADCs) with up to 17 external channels

• 14-bit effective resolution at 250ksps with hardware averaging

– One general-purpose amplifier (GPAMP)

– Configurable 1.4V or 2.5V internal shared voltage reference (VREF)

– Integrated temperature sensor

– Integrated supply monitor

• Optimized low-power modes

– RUN: 101µA/MHz (CoreMark)

– SLEEP: 487µA at 4MHz

– STOP: 47µA at 32kHz

– STANDBY: 1.5µA with RTC and SRAM retention

– SHUTDOWN: 80nA with IO wakeup capability

• Intelligent digital peripherals

– 7-channel DMA controller

– Two 16-bit advanced control timers support dead band insertion and fault handling

– Seven timers supporting up to 22 PWM channels

• One 16-bit general purpose timer

• One 16-bit general purpose timer supports QEI

• Two 16-bit general-purpose timers support low-power operation in STANDBY mode

• One 32-bit general-purpose timer

• Two 16-bit advanced timers with deadband

– Two window-watchdog timers

– RTC with alarm and calendar mode

• Enhanced communication interfaces

– Four UART interfaces; one supports LIN, IrDA, DALI, Smart Card, Manchester, and three support low-power operation in STANDBY mode

– Two I2C interfaces supporting up to FM+ (1Mbit/s), SMBus, PMBus, and wakeup from STOP mode

– Two SPIs, one SPI supports up to 32Mbits/s

– One Controller Area Network (CAN) interface supports CAN 2.0 A or B and CAN-FD

• Clock system

– Internal 4MHz to 32MHz oscillator with up to ±1.2% accuracy (SYSOSC)

– Phase-locked loop (PLL) up to 80MHz

– Internal 32kHz oscillator (LFOSC) with ±3% accuracy

– External 4MHz to 48MHz crystal oscillator

– External 32kHz crystal oscillator(LFXT)

– External clock input

• Data integrity and encryption

– Cyclic redundancy checker (CRC-16, CRC-32)

– True random number generator (TRNG)

– AES encryption with 128- or 256-bit key

• Flexible I/O features

– Up to 60 GPIOs

• Two 5V-tolerant IOs

• Two high-drive IOs with 20mA drive strength

Applications Of M0G3106QDGS20RQ1

Automotive body electronics and Lighting

Automotive Gateway

Steering Wheel Systems

Automotive Motor Control

DC to AC Inverters

Automotive Interior Lighting

Door handle modules

Kick to open modules

Vehicle Occupancy Detection

Seat Comfort Module
