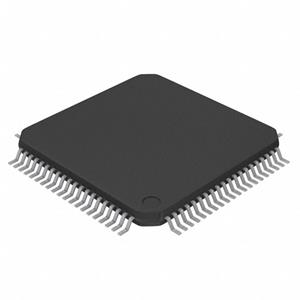

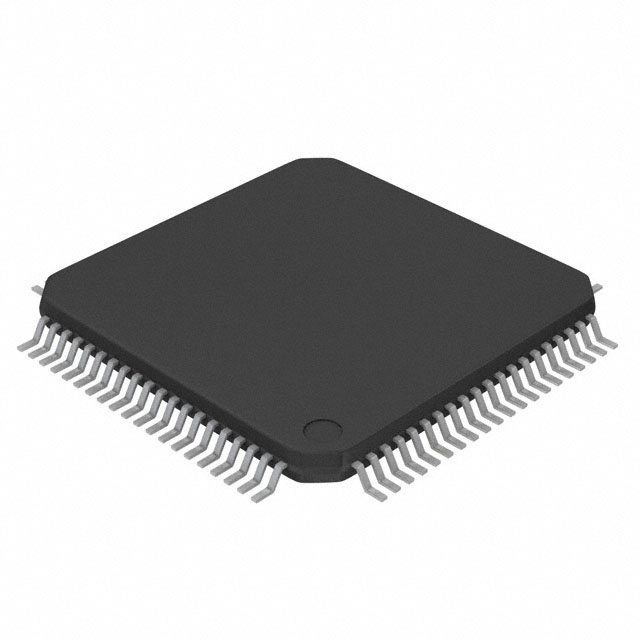

The STM32U385CGT6 is a low-power microcontroller based on a high-performance Arm® Cortex®-M33 32-bit RISC core. The main frequency is as high as 96 MHz. This device is equipped with 1 Mbyte of flash memory and 256 Kbyte of RAM. The following are its main specifications:

Core processor: ARM® Cortex®-M33F

Kernel specification: 32-bit

Speed: 96MHz

Connection capabilities: CANbus, I2C, IrDA, LINbus, SAI, Smart Card, SPDIF, SPI, UART/USART, USB

Peripherals: Undervoltage detection/reset, DMA, motor control PWM, POR, PWM, WDT

I/O count: 33

Program storage capacity: 1MB (1M x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 256K x 8

Voltage - Power supply (Vcc/Vdd) : 1.71V to 3.6V

Data converter: A/D 10x12b SAR; D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Encapsulation: 48-LQFP

In addition, the STM32U385CGT6 device supports multiple independent power supplies, including analog independent power inputs for ADCs, Dacs, operational amplifiers, and comparators, as well as 3.3V dedicated power inputs for USB and up to 14 I/O ports (I/O can be independently powered up to 1.08V). And a VBAT input for connecting the backup battery, which can maintain the RTC function and back up 32 32-bit registers.

The STM32U385CGT6 microcontroller is suitable for scenarios with strict requirements for power consumption and security, such as wearable devices, home automation, and industrial sensors. ‌
