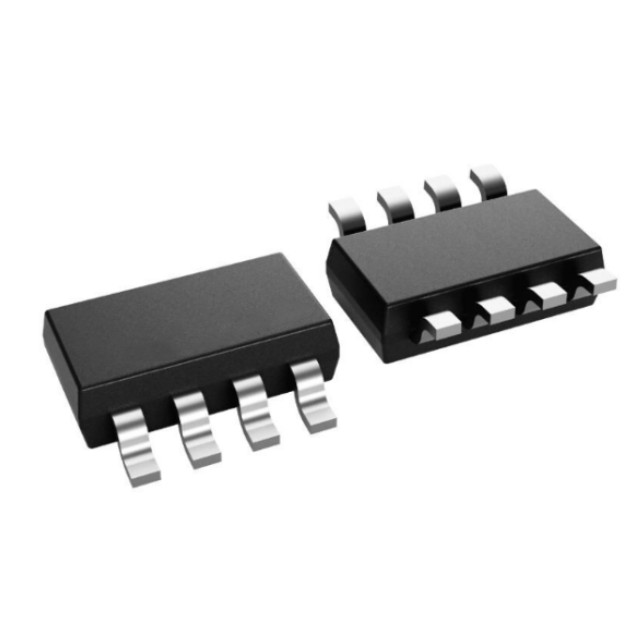

M0C1103QDDFRQ1 microcontrollers (MCUs) is the MSP highly-integrated ultra-low-power 32-bit MCU based on the enhanced Arm Cortex-M0+ core platform operating at up to 24MHz frequency. The MCU offer high-performance analog peripheral integration, support extended temperature ranges from -40°C to 125°C, and operate with supply voltages from 1.62V to 3.6V.

M0C1103QDDFRQ1 devices provide up to 16KB embedded flash program memory with 1KB SRAM. These MCUs incorporate a high-speed on-chip oscillator with an accuracy from -2% to +1.2%, eliminating the need for an external crystal. Additional features include a 1-channel DMA, CRC-16 accelerator, and a variety of high-performance analog peripherals such as one 12-bit 1.5Msps ADC with VDD as the voltage reference, and an on-chip temperature sensor. These devices also offer intelligent digital peripherals such as one 16-bit advanced timer, two 16-bit general purpose timer, one windowed watchdog timer, and a variety of communication peripherals including one UART, one SPI, and one I2C. These communication peripherals offer protocol support for LIN, IrDA, DALI, Manchester, smart card, SMBus, and PMBus.

Feature Of M0C1103QDDFRQ1

AEC-Q100 qualified for automotive applications

Temperature grade 1: –40°C to +125°C, TA

Core

Arm 32-bit Cortex-M0+ CPU, frequency up to 24MHz

Operating characteristics

Extended temperature: –40°C to 125°C

Wide supply voltage range: 1.62V to 3.6V

Memories

Up to 16KB of flash

1KB of SRAM

High-performance analog peripherals

One analog-to-digital converter (ADC) with up to 10 total external channels, 1.7Msps at 10 bit or 1.5Msps at 12 bit with VDD as the voltage reference

Configurable 1.4V or 2.5V internal ADC voltage reference (VREF)

Integrated temperature sensor

Integrated supply monitor

Optimized low-power modes

RUN: 87µA/MHz

STOP: 609µA at 4MHz, 311µA at 32kHz

STANDBY: 5µA with SRAM retention

SHUTDOWN: 200nA

Intelligent digital peripherals

1-channel DMA controller dedicated for ADC

Three timers supporting up to 14 PWM channels

One 16-bit advanced timers with deadband support up to 8 PWM channels

One 16-bit general purpose timer with 4 capture/compares

One 16-bit general purpose timer with 2 capture/compares

Windowed watchdog timer

BEEPER generating 1kHz, 2kHz, 4kHz, or 8kHz square wave to drive the external beeper

Enhanced communication interfaces

One UART interface supporting LIN, IrDA, DALI, smart card, Manchester and low-power operation in STANDBY mode

One I2C interface supporting FM+ (1Mbps), SMBus, PMBus, and wakeup from STOP mode

One SPI supporting up to 12Mbps

Clock system

Internal 24MHz oscillator with an accuracy from -2% to +1.2% (SYSOSC)

Internal 32kHz low-frequency oscillator (LFOSC)

Data integrity

Cyclic redundancy checker (CRC-16)

Flexible I/O features

Up to 18 GPIOs

Two 5V-tolerant open-drain IOs

Applications Of

Automotive body electronics and Lighting

Automotive Gateway

Steering Wheel Systems

Automotive Motor Control

DC to AC Inverters

Automotive Interior Lighting

Door handle modules

Kick to open modules

Vehicle Occupancy Detection

Seat Comfort Module
