The 9ZML1255AKILF device is a derivative product of the second-generation enhanced performance DB1200ZL. It features PLL and Bypass modes to achieve flexibility. This PLL features a low-noise PLL and can be used as a PCIe clock jitter eliminator. The 9ZML1255AKILF supports PCIe GEN1-5 and more complex architectures such as SRIS and SRNS clocks. In addition, the 9ZML1255AKILF also features an SMBus write lock pin to enhance the security of the device and system.

Functional features

PLL or bypass mode; PLL can eliminate the jitter of the input clock

It complies with the PCIe Gen1-5 standard in PLL mode

It complies with the PCIe Gen1-5 standard in bypass mode

Supports PCIe SRIS and SRNS clocks

Supported by United Press International /QPI

Low-pass HCSL output when Zout = 85Ω; Eliminate 48 resistors

12 OE# pins; Hardware control for each output

Expand spectrum tolerance; Allow for the reduction of electromagnetic interference

Nine optional SMBus addresses; Multiple devices can share the same SMBus network segment

Pin /SMBus offers optional PLL bandwidth and PLL bypass. Minimize phase jitter for each application

Easily exchange and couple to other output logics such as LVPECL/LVDS

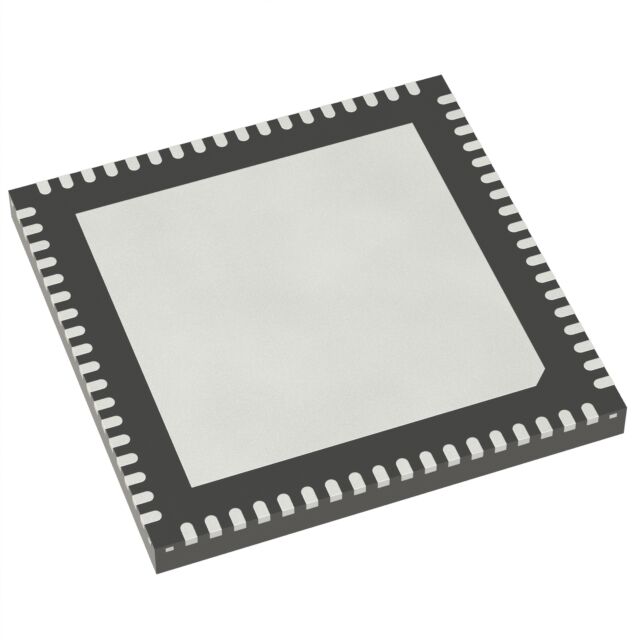

10mm x 10mm 72-QFN package

Application scenarios

The 9ZML1255AKILF is mainly applied in scenarios such as servers and data centers that require high-precision clock management. It reduces system power consumption and enhances signal integrity by optimizing the clock architecture. ‌
