The LTC2184CUP is A dual-channel 16-bit A/D converter, specifically designed for digital processing of high-frequency and wide dynamic range signals. This device is highly suitable for demanding communication applications, with AC performance including 76.8dB SNR and 90dB parasitic dynamic range (SFDR). The ultra-low jitter of 0.07psRMS achieves under-sampling of IF frequency and outstanding noise performance.

The LTC2184CUP mainly has the following functions:

Two-channel simultaneous sampling ADC

76.8dB SNR

90dB SFDR

Low power: 370mW / 308mW / 200mW (total value)

185mW / 154mW / 100mW (per channel)

Only 1.8V power supply

CMOS, DDR CMOS or DDR LVDS output

Optional input range: 1VP-P to 2VP-P

550MHz full power bandwidth S/H (sampling and holding)

A random function generator for arbitrary data output

Optional clock duty cycle stabilizer

Shutdown and nap mode

The serial SPI port for configuration

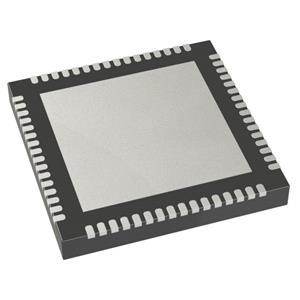

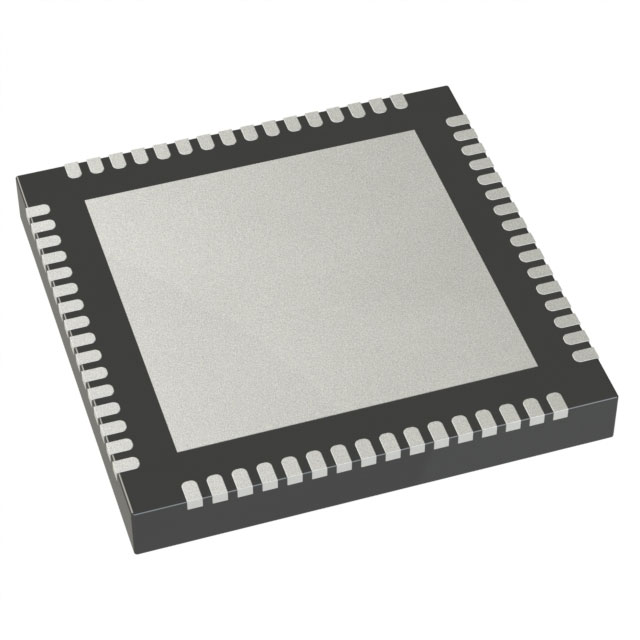

64-pin (9mm x 9mm) QFN package

Typical applications

Communication

Cellular base station

Software-defined radio

Portable medical imaging

Multi-channel data acquisition

Non-destructive testing
