The LTC2386CUH-16 is a low-noise, high-speed, 16-bit, 10Msps sequential approximation register (SAR) ADC that is highly suitable for a wide range of applications. The LTC2386CUH-16 combines outstanding linear and dynamic range, making it an ideal choice for high-speed imaging and instrumentation applications. Delay-free operation offers a unique solution for high-speed control loop applications. Very low loss at high input frequencies can truly enable communication applications that require wide dynamic range and large signal bandwidth.

Main features

10Msps throughput rate

No pipeline delay, no cycle delay

The typical SNR value at fIN = 1MHz is 93.8dB

The typical SFDR value at fIN = 1MHz is 102dB

Input Nyquist sampling with a frequency as high as 5MHz

Guarantee 16 bits with no missing codes

±0.5LSB INL (maximum value)

8.192VP-P differential input

5V and 2.5V power supplies

Internal 20ppm/°C (maximum value) reference

Serial LVDS interface

Power dissipation of 97mW

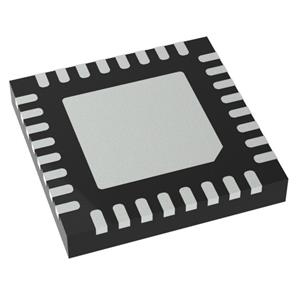

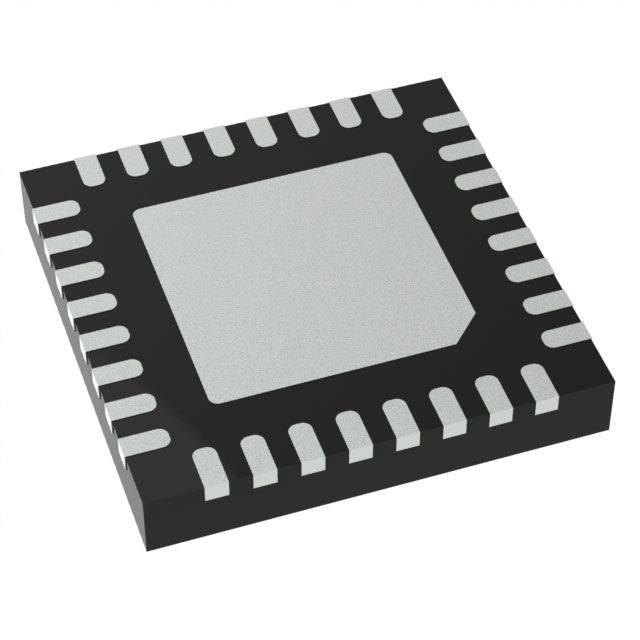

32-pin (5mm x 5mm) QFN package

Typical applications

The LTC2386CUH-16 is applicable to fields such as high-speed data acquisition, imaging, communication, control loops, and industrial test equipment. ‌
