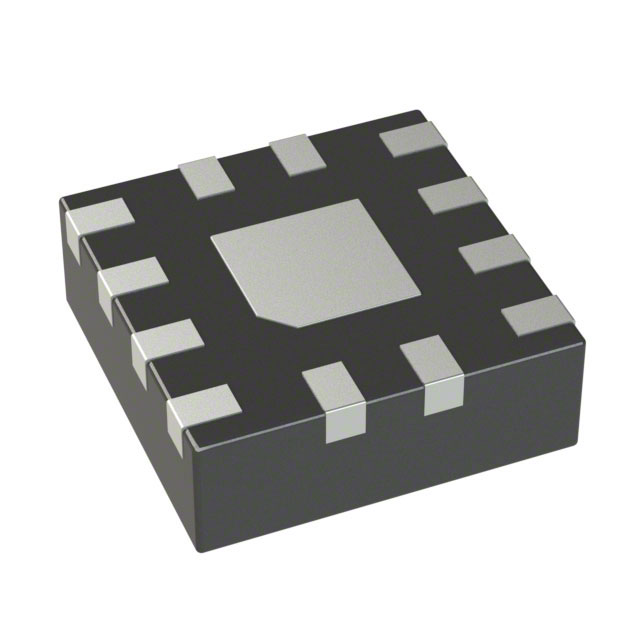

TRF1108RPVR is a very high-performance, differential-to-single-ended (D2S) amplifier optimized for radio-frequency (RF) applications. The device is an excellent choice for applications that require a D2S conversion at the output of digital-to-analog converter (DAC) such as the high-performance DAC39RF10 or AFE7950. The on-chip matching components simplify printed-circuit-board (PCB) implementation and provide the highest performance over the usable bandwidth. The device is fabricated using Texas Instruments’ advanced complementary BiCMOS process and is available in a space-saving, WQFN-FCRLF 2mm × 2mm package.

Feature Of IWRL6432BDQAYFFR

Differential-to-single-ended (D2S) RF amplifier

Near-DC to 8GHz

Gain: 15.5dB at 2GHz

OP1dB:

2GHz: 12dBm

6GHz: 10dBm

OIP3:

2GHz: 28dBm

6GHz: 28.5dBm

Noise figure (NF) and input noise spectral density:

2GHz: 11dB and –163dBm/Hz

6GHz: 11.5dB and –162.5dBm/Hz

HD2 and HD3:

HD2 (1GHz): –60dBc at 2dBm

HD3 (1GHz): –58dBc at 2dBm

Additive (residual) phase noise:

1GHz: –154.6dBc/Hz at 10kHz offset

Gain and phase imbalance: ±0.6dB and ±2º

Differential input matched to 100Ω

Single-ended output matched to 50Ω

Power-down feature

5V supply

Active current: 170mA

Applications Of IWRL6432BDQAYFFR

Directly interfaces with RF DACs

Aerospace and defense

Phased array radar

Military radios

4G and 5G wireless BTS

Test and measurement

Active probe
