Trade Name:RF Mixer
Brand:ADI
Particular Year:25+
Package:LFCSP-32
Delivery Date:New and Original
Stock: 3000pcs
ADA8282WBCPZ: RF Amplifier - 4-Channel Low Noise Preamplifier (LNA) and Programmable Gain Amplifier (PGA)
Model No.: ADA8282WBCPZ
Package: LFCSP-32
Type: RF Amplifier
The ADA8282WBCPZ features four parallel channels, each including a low noise preamplifier (LNA) and a programmable gain amplifier (PGA). When combined, the LNA and PGA form a signal chain with a gain range of 18 dB to 36 dB in 6 dB increments and a minimum guaranteed bandwidth of 5 MHz.

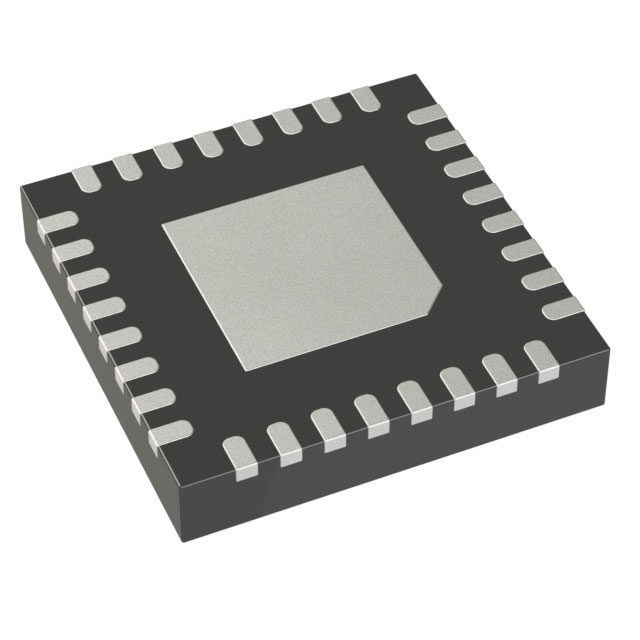

The ADA8282WBCPZ is fabricated using an advanced complementary metal-oxide-semiconductor (CMOS) process and is available in a 5 mm × 5 mm, RoHS-compliant, 32-pin LFCSP package. Temperature ratings range from -40°C to +125°C for automotive applications.
ADA8282WBCPZ Product Features:
4-channel low-noise amplifier (LNA) followed by programmable gain amplifier (PGA)
-3 dB minimum bandwidth: 5 MHz
T-3 dB typical bandwidth: 42.3 MHz
Typical slew rate: 28 V/µs
Differential Inputs and Outputs
Gain: 18 dB to 36 dB in 6 dB steps
Selectable low noise and low power modes
Noise folded to input: 4.5 nV/√Hz (18.3 mW per channel)
Noise folded to input: 3.6 nV/√Hz (34.8 mW per channel)
Noise folded to input: 3.4 nV/√Hz (54.8 mW per channel)
ADA8282WBCPZ Applications:
Automotive radar
Adaptive cruise control
Collision avoidance systems
Blind spot detection
Automated parking
Electronic Bumper
